A single ceramic cylinder barely larger than a pencil eraser can release roughly the same thermal energy as burning an entire ton of coal. That comparison, repeated by both the U.S. Nuclear Regulatory Commission and the Department of Energy, captures why nuclear fuel remains one of the most energy-dense materials in commercial electricity generation. With coal-fired plants continuing to close across the country, the sheer concentration of energy inside each uranium dioxide pellet is drawing fresh attention from utilities planning their generation mix for the next decade.
How one pellet stacks up against a ton of coal
The physical facts are striking. The NRC defines a nuclear fuel pellet as a thimble-sized cylinder with a diameter of roughly three-eighths of an inch, composed of uranium dioxide, or UO2. That tiny object, small enough to rest on a fingertip, is the basic building block of every commercial reactor core in the United States. Thousands of pellets are stacked end to end inside metal fuel rods, which are then bundled into assemblies and loaded into the reactor vessel.
The Department of Energy has published the energy equivalence in concrete terms: one pellet holds about as much energy as a ton of coal, 150 gallons of oil, or 17,000 cubic feet of natural gas. Those figures appear in DOE outreach materials and have been cited in agency communications for years. On the coal side of the equation, the Energy Information Administration maintains official heat-content statistics through its coal data portal, providing the baseline against which the comparison is drawn.

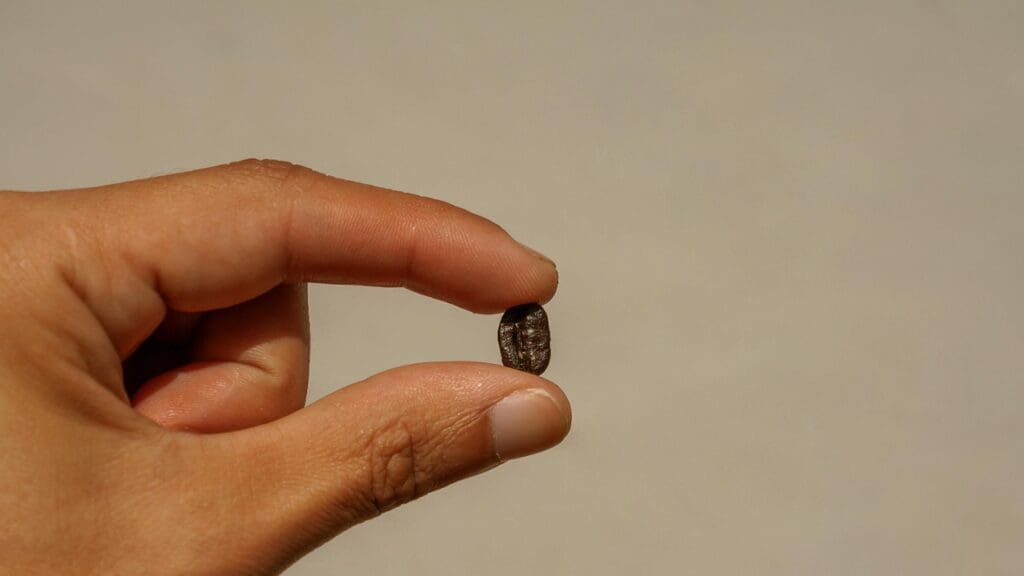

For a general reader, the practical meaning is simple. A pickup truck carrying a single ton of bituminous coal delivers roughly the same total heat energy as one ceramic pellet you could hold between your thumb and forefinger. The difference in mass is on the order of a million to one, which is why nuclear plants can operate for long stretches on relatively small fuel loads and why fuel deliveries to nuclear sites are comparatively infrequent.
Burn-up limits and the gap the official comparison leaves open
The DOE comparison is a useful shorthand, but it rests on assumptions that are not spelled out in any of the agency’s public-facing documents. Neither the NRC glossary entry nor the DOE article specifies the exact enrichment level, pellet mass, or burn-up rate used to arrive at the one-pellet-equals-one-ton figure. Burn-up, measured in gigawatt-days per metric ton of uranium, determines how much energy a reactor actually extracts from each pellet before it is removed from service.
Reactors licensed to operate at the upper end of current burn-up limits extract more energy per pellet than those running at lower rates. If the DOE figure was calculated using a mid-range assumption, then high-burn-up fuel assemblies could exceed the stated ratio by a significant margin when measured against typical EIA coal heat content. The absence of a published calculation makes it difficult to pin down the exact overshoot, but the directional logic is clear: higher burn-up means more energy per pellet, which stretches the coal comparison even further.
The NRC notes that fuel pellets are replaced every 18 to 24 months during scheduled refueling outages. During that operating cycle, each pellet undergoes fission continuously, and the total energy released depends on reactor design, fuel enrichment, operating temperature, and licensed burn-up ceilings. None of the available primary documents from the NRC or DOE publish the step-by-step arithmetic connecting pellet mass, enrichment, and burn-up to the coal equivalence figure, leaving analysts to infer the underlying assumptions.
Why the missing math matters for planners
The gap in documentation matters beyond academic curiosity. Utilities evaluating whether to extend reactor licenses, build new plants, or invest in advanced reactor designs need precise energy-density benchmarks to compare fuel costs across sources. A rule-of-thumb comparison is useful for public communication, but engineering and financial decisions require the underlying numbers, including how much of the theoretical energy content is actually converted to electricity over a fuel cycle.
EIA coal heat-content data show that the energy in a ton of coal varies by rank and region. Bituminous coal from Appalachia delivers different heat content per ton than sub-bituminous coal from the Powder River Basin, and lignite is lower still. The DOE comparison does not specify which coal grade serves as the benchmark, adding another layer of ambiguity to an otherwise vivid analogy. Depending on the coal assumed, the same pellet could be “worth” somewhat more or somewhat less than a ton in strict energy terms, even though the order-of-magnitude contrast remains the same.
For utilities, those nuances influence more than just public messaging. Fuel contracts, transportation logistics, and emissions profiles all hinge on exact heat content. A coal plant’s annual fuel bill depends on how many tons must be delivered to achieve a given megawatt-hour output. A nuclear operator, by contrast, is concerned with how many fuel assemblies must be fabricated and how far each assembly can be pushed within regulatory burn-up limits. Translating between those worlds requires a transparent methodology, not just a memorable comparison.
Implications for the energy transition
Even without the missing arithmetic, the core takeaway for the energy transition is straightforward. Nuclear fuel is extraordinarily energy-dense compared to fossil fuels, and that density translates into smaller fuel volumes, fewer supply-chain shipments, and a compact waste stream relative to the electricity produced. Those characteristics give nuclear power a distinct profile as coal retirements accelerate and grid planners search for firm, low-carbon generation that can run around the clock.
Because so much energy is packed into each pellet, a single reactor can operate for many months between refueling outages, providing a stable backbone of generation that does not depend on daily fuel deliveries. That stability is one reason some grid operators and utilities view existing reactors as valuable complements to growing fleets of wind and solar plants, which depend on weather conditions and require balancing resources.
At the same time, the lack of published detail behind headline comparisons can complicate public debates about nuclear power. Advocates sometimes lean heavily on the pellet-to-coal analogy to underscore nuclear’s efficiency, while critics focus on unresolved questions about long-term waste management and plant economics. A more transparent accounting of how agencies derive their energy-equivalence figures would give both sides a firmer factual foundation.
What to watch as advanced reactors emerge
The next development to watch is whether the NRC or DOE publishes a transparent methodology behind the pellet-to-coal equivalence as part of broader public engagement around advanced reactors and higher-enrichment fuels now under review. A documented calculation would let independent analysts verify the claim, adjust it for different reactor types, and give utilities a sharper tool for comparing fuel strategies across coal, gas, and nuclear options.
Advanced reactor designs, including some that propose using higher-assay low-enriched uranium or alternative fuel forms, could alter the familiar pellet analogy altogether. If new fuels achieve higher burn-up or rely on different geometries, the energy content of a single unit might diverge from the standard pellet used in today’s comparisons. Clear, accessible math would help policymakers and the public understand how those innovations change the picture and whether future reactors widen or narrow the already large gap between nuclear fuel and a ton of coal.
Until that level of detail is published, the one-pellet-equals-one-ton comparison will remain a powerful but approximate way to convey nuclear energy’s density. It captures the scale of the difference in a way few other statistics can, even as it leaves open important questions about the precise assumptions behind the number and how it should be updated as reactor technologies evolve.
