In May 2026, the United States completed delivery of the last of six superconducting magnet modules built in San Diego to the ITER fusion reactor site in southern France, finishing what the ITER Organization calls the most powerful pulsed magnet ever constructed. The sixth module of the Central Solenoid, manufactured and tested by General Atomics under contract to the U.S. Department of Energy, closes out one of the single largest hardware contributions any nation has made to the international project. With all six modules and their support structure now delivered, the magnet stack that ITER engineers call the reactor’s “beating heart” is ready for on-site assembly.
What the Central Solenoid actually does

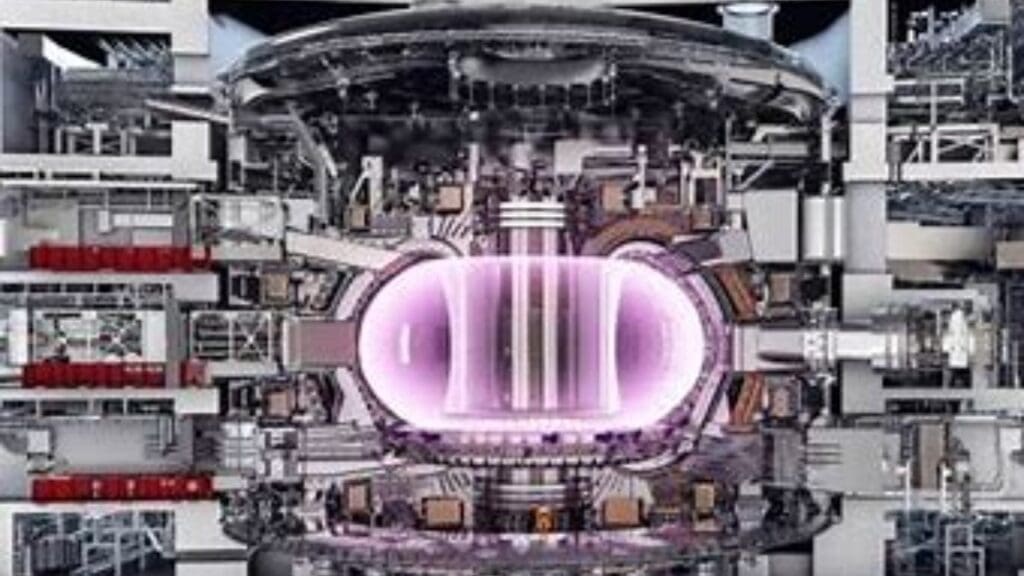

ITER is a tokamak, a doughnut-shaped machine designed to prove that fusing hydrogen isotopes can produce net energy on a commercial-relevant scale. The Central Solenoid sits in the hollow center of that doughnut. When energized, it acts like a massive electromagnetic piston: a rapid current ramp through its niobium-tin superconducting coils induces a secondary current in the hydrogen fuel, heating it into a plasma that exceeds 150 million degrees Celsius and pinching it away from the reactor walls.
Without that induced current, there is no plasma and no fusion. The Central Solenoid also helps shape and stabilize the plasma throughout each experimental pulse, making it essential not just for ignition but for sustained operation. Oak Ridge National Laboratory, which manages the U.S. ITER project office, has described the magnet as responsible for initiating, generating, and maintaining the plasma current that keeps the reaction running.
How the magnet was built
General Atomics fabricated all seven Central Solenoid units (six for the stack, one spare) at a purpose-built facility in San Diego. Each module is a precision-wound coil of niobium-tin superconductor encased in a steel jacket, cooled to around 4 Kelvin (minus 269 degrees Celsius) during operation. Stacked together, the full assembly rises roughly 59 feet and weighs about 1,000 metric tons, according to figures published by ORNL and the ITER Organization, making it taller than a five-story building and heavier than a fully loaded Boeing 747.
Before any module left California, it had to pass qualification testing at a dedicated final test facility at General Atomics. The design and commissioning of that facility were documented in a peer-reviewed paper published in Fusion Engineering and Design. Each unit was subjected to high-current, cryogenic-temperature trials that verified its electromagnetic performance and structural integrity under conditions simulating reactor operation.
The support structure holding the solenoid stack in place was fabricated separately in Pennsylvania and shipped across the Atlantic. ORNL confirmed that the final structural components reached the ITER site alongside the last module shipments, effectively closing the entire U.S. procurement package for the Central Solenoid.
Why this delivery matters for ITER
Large superconducting magnets have long sat on ITER’s critical path. They are among the most technically demanding components in the reactor, requiring specialized materials, extreme manufacturing tolerances, and years-long production cycles. Completing the Central Solenoid removes one of the biggest single-item procurement risks from the project and validates a fabrication pipeline that did not exist before General Atomics built it.
“This is the culmination of over a decade of work by hundreds of dedicated people,” said Kathy McCarthy, director of the U.S. ITER project office at Oak Ridge National Laboratory, in an ORNL statement announcing the final delivery. “The Central Solenoid is the beating heart of ITER, and delivering it on specification is a testament to the skill and commitment of the entire team.”
The accomplishment also carries weight beyond ITER. The manufacturing techniques General Atomics developed for winding, insulating, and testing large-bore niobium-tin solenoid modules could, in principle, be adapted for future fusion pilot plants. Whether that scaling is practical depends on production data, including rejection rates and per-unit costs, that have not been published.
For the broader fusion community, the Central Solenoid delivery is a concrete proof point at a time when the field is under intense scrutiny. Private fusion companies such as Commonwealth Fusion Systems and TAE Technologies are racing to build smaller, faster machines, and some critics have questioned whether ITER’s government-led, multinational model can deliver results on a relevant timeline. Finishing the magnet on specification, even if the overall project has run years behind schedule, demonstrates that the underlying engineering works at a scale no private venture has yet attempted.
What still has to happen
Delivering parts is not the same as finishing a reactor. The six modules must now be stacked, aligned, and integrated into the tokamak pit alongside ITER’s other magnet systems, vacuum vessel sectors, and thermal shielding. No primary source currently provides a firm date for when the assembled solenoid will be lowered into position or when ITER expects to achieve first plasma.
That ambiguity is not new. ITER’s master schedule has been revised multiple times since construction began. Updated cost-to-complete figures tied to this final U.S. delivery have not appeared in any publicly available documents.
On the engineering side, published technical reports from the DOE’s Office of Scientific and Technical Information detail individual module fabrication and single-module test results. No public dataset yet exists, however, for the full six-module stack operating under combined electromagnetic and thermal loads. That means the magnet’s performance as a unified system has not been independently validated outside of modeling and simulation. On-site integration testing will be the next major technical milestone.
From fabrication to assembly inside the tokamak pit
The Central Solenoid’s completion shifts attention from fabrication to assembly, a phase that will test ITER’s ability to bring together components built on three continents into a functioning machine. The tokamak’s other major magnet systems, including 18 toroidal field coils and six poloidal field coils contributed by partner nations, are in various stages of delivery and installation. Fitting all of them together with millimeter-level precision inside a structure the size of a small apartment building is an engineering challenge with no precedent.
For the United States, the delivery marks the end of a fabrication campaign that stretched across more than a decade and involved hundreds of engineers and technicians at General Atomics and Oak Ridge. Whether the magnet fulfills its promise depends on what happens next in southern France, but the hardware itself is now where it needs to be.
