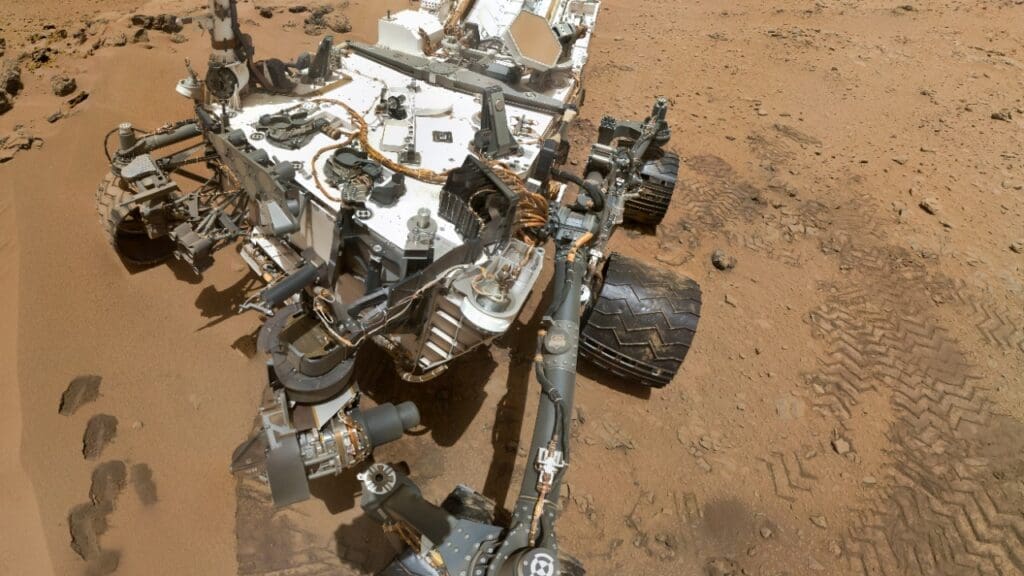

After more than 12 years on Mars, NASA’s Curiosity rover has driven into something it has never seen before: a sprawling maze of stone walls rising from the floor of Gale Crater, arranged in interlocking polygons that look, from above, like a giant honeycomb carved into the planet’s surface. The walls are not carved at all, though. They are hardened mineral veins, left behind when ancient groundwater seeped through cracks in the bedrock and deposited calcium-rich minerals that outlasted the softer rock around them. As that rock eroded over millions of years, the veins remained standing, creating a three-dimensional fossil of a plumbing network that once channeled water beneath the Martian surface.
The discovery, documented in mission images and blog entries beginning roughly a year ago and published by NASA in June 2025, offers some of the most vivid physical evidence yet that liquid water persisted inside Gale Crater long enough to build an extensive underground network of fluid pathways. It also raises pointed questions about whether those conditions could have supported microbial life.
A stone honeycomb on the crater floor
Geologists call the pattern boxwork: low walls of resistant mineral material that remain standing after the weaker surrounding rock wears away. On Earth, the best-known examples line the ceilings of Wind Cave in South Dakota, where thin blades of calcite jut from limestone surfaces in a lattice of interlocking boxes. The Martian version is far larger. According to NASA’s image-release captions, which reflect instrument-informed assessments by the mission science team but have not yet been peer-reviewed, the ridges in Gale Crater stand roughly 3 to 6 feet (1 to 2 meters) tall, and their crests contain central fractures, the original cracks through which groundwater once flowed and concentrated minerals.
Curiosity captured its first full panorama of the area by stitching together 291 Mastcam images taken between May 15 and May 18, 2025. That 360-degree mosaic shows hardened ridges stretching in every direction, confirming the boxwork is not a single isolated outcrop but a widespread feature across this section of the crater floor. The ridges form polygonal enclosures that repeat across the landscape, suggesting the underlying fractures cut through a broad volume of bedrock before being filled with mineral-laden fluids.
At finer scales, the science team documented a second, smaller texture layered on top of the larger boxwork. Near a feature called Ghost Mountain butte, polygonal fractures form honeycomb-like patterns with raised ridges about 1 centimeter high that extend 20 to 30 meters across the surface. The mission blog for Sols 4529 through 4531 described these as “honeycombs and waffles,” playful shorthand for textures that carry real scientific weight. Their proximity to the taller boxwork structures hints that both fracture networks may share a common origin in fluid-driven mineralization, though they differ sharply in scale.
What the close-ups reveal
The sharpest view of the ridges comes from the Mars Hand Lens Imager (MAHLI), a camera mounted on Curiosity’s robotic arm that can resolve features smaller than a grain of sand. In the high-resolution MAHLI frame cataloged as PIA26697, small nodules protrude from the vein surfaces along the ridgetops. Those nodules may represent localized zones of enhanced mineral growth, spots where water lingered longer or where subtle chemical differences promoted crystallization. The image is credited to NASA/JPL-Caltech/MSSS.
Curiosity has encountered calcium-rich veins before. Earlier in the mission, the rover’s ChemCam laser detected elevated calcium sulfate, interpreted as bassanite or gypsum, inside bright vein material at Yellowknife Bay. A peer-reviewed study by Kronyak et al., published in 2019 through the U.S. Geological Survey, cataloged multiple classes of diagenetic features at Pahrump Hills, including light-toned calcium-sulfate veins, dark-toned veins containing calcium and fluorine interpreted as fluorite, and dark raised ridges enriched in magnesium and calcium. Those findings established that water moved through Gale Crater rock in multiple episodes and under varying chemical conditions, a pattern the new boxwork terrain appears to extend on a dramatic scale.
“The deserved attention this boxwork is getting reflects how unusual it is, even for a rover that has spent over a decade driving through altered sedimentary rock,” said Abigail Fraeman, Curiosity’s deputy project scientist at NASA’s Jet Propulsion Laboratory, in a June 2025 mission blog entry. “We are still working to understand the full story these features are telling us.”
In that context, the boxwork ridges fit into a broader story about diagenesis, the suite of processes that alter sediments after they are deposited. By cutting across layering and preserving a record of fluid flow long after the surrounding rock has worn away, the veins act as an inverted map of ancient groundwater pathways. The fact that similar calcium-bearing veins appear in widely separated parts of Gale Crater strengthens the case that Curiosity is sampling a long-lived, crater-wide hydrologic system rather than a fleeting, localized event.
Key questions still open
As of mid-2026, no ChemCam or MAHLI compositional data from the boxwork site itself has been publicly released. The calcium identification for the ridges comes from the mission’s image-release caption, which reflects internal team assessments, rather than from a published chemical spectrum. Until laser-ablation results for these specific veins are shared, the exact mineral species, whether gypsum, bassanite, calcite, or something else, cannot be confirmed. That distinction matters: different calcium minerals form under different temperature and water-chemistry conditions, which bear directly on how habitable the environment might have been.
Translating ridge geometry into estimates of water volume, flow rate, or persistence requires modeling that has not yet appeared in any public document. The honeycomb textures described on the mission blog remain at the observational stage, and competing hypotheses, from thermal contraction cracking to desiccation, have yet to be weighed in a peer-reviewed analysis.
One particularly tantalizing question is whether the small-scale honeycomb fractures formed at the same time as the taller boxwork veins or represent a later, shallower episode of fluid activity. The two textures sit close together near Ghost Mountain butte, and their spatial overlap could be tested by comparing MAHLI texture maps with ChemCam chemistry along a short traverse. If the honeycomb ridges share the same calcium signature as the boxwork veins, a single prolonged water system becomes more plausible. If their chemistry diverges, scientists would need to account for at least two distinct fluid events, potentially recording a shift in groundwater level or in the composition of fluids circulating through the crater.
It is also unclear how deep the fracture network once extended. The exposed boxwork offers only a surface cross-section through what may have been a much thicker package of fractured rock. Without subsurface radar data at Gale Crater, researchers must infer the system’s three-dimensional geometry from surface patterns alone.
What the boxwork does and does not prove about ancient water
Veins and fracture fills demonstrate that water once moved through the rock. They do not, by themselves, prove that the environment was warm, long-lived, or chemically benign enough for life. Those judgments depend on mineral identifications, fluid chemistry, and timing, all of which remain only partly constrained at this site.
Still, the boxwork field is among the most visually striking and spatially extensive evidence of subsurface water activity Curiosity has encountered in Gale Crater. It reinforces a picture that has been building for years: this crater once hosted not just a surface lake, as earlier mission findings established, but a deeper groundwater system that persisted long enough to leave durable mineral traces across a wide area.
As additional instrument data are released through resources such as the NASA Photojournal, scientists will be able to test whether the honeycomb textures and boxwork ridges record a single, integrated hydrologic system or a more fragmented history of changing Martian waters. Either answer would sharpen our understanding of how long water lingered beneath the surface of a planet that, from orbit, looks bone-dry.
