As NASA prepares to send four astronauts around the Moon on Artemis II, a photograph of the Orion spacecraft’s heat shield sparked a wave of online concern in early 2026. A visible spot on the capsule’s underside looked, to many observers, like a chunk of missing thermal protection. NASA says it is nothing of the sort: the feature is a compression pad, one of several engineered components built into the shield by design.
The clarification matters because Orion’s heat shield already has a real, well-documented problem, and conflating the two risks muddying public understanding of a mission that will carry astronauts Reid Wiseman, Victor Glover, Christina Koch, and Canadian Space Agency astronaut Jeremy Hansen on a lunar flyby currently targeted for April 2026.
The compression pads are supposed to be there

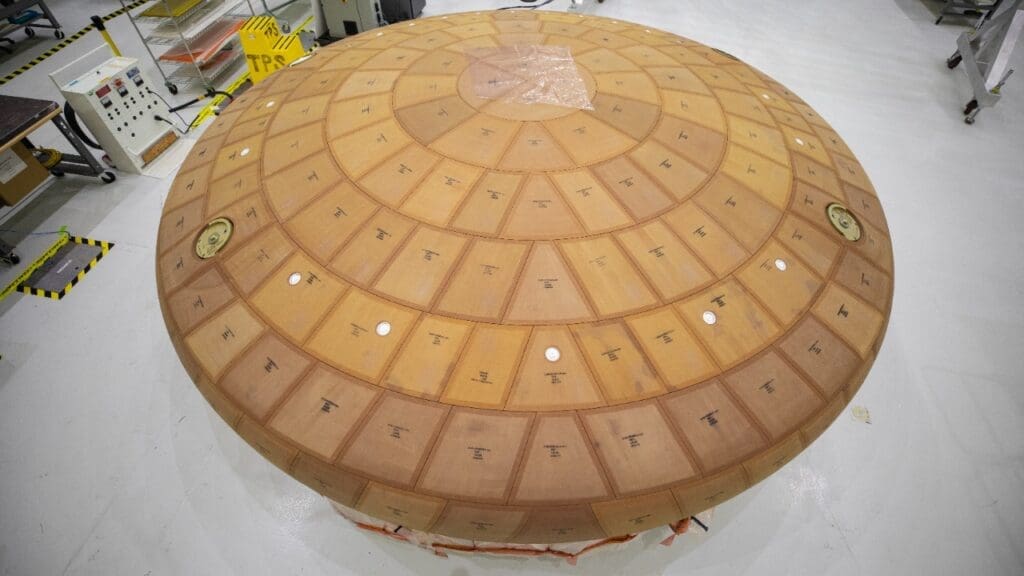

Orion’s heat shield is covered in Avcoat, an ablative material that chars and erodes in a controlled way to dissipate the extreme heat of atmospheric reentry. Embedded in that surface are several compression pads: disc-shaped fittings made from different materials that sit at structural attachment points between the heat shield and the crew module. They bear mechanical loads and are designed to handle a distinct thermal environment from the surrounding ablator.
NASA’s own technical documentation on Orion’s thermal protection confirms these pads exist and describes their purpose. Under certain lighting or camera angles, they can appear as bare or discolored spots against the darker Avcoat surface. That visual contrast appears to be what triggered the “missing patch” speculation on social media.
The real heat-shield problem: Artemis I char loss
The actual engineering concern with Orion’s heat shield emerged after the uncrewed Artemis I mission splashed down in December 2022. Post-flight inspections revealed unexpected char loss across portions of the Avcoat material: cracking and uneven shedding that went beyond what engineers had predicted.
A lengthy investigation traced the root cause to a permeability issue within the ablator. Gases trapped inside the Avcoat could not vent properly during reentry. As temperatures climbed, those trapped gases built up pressure, fracturing the charred outer layer and causing pieces to break away. NASA confirmed the cause after replicating the conditions in arc-jet test facilities on the ground, subjecting sample material to the same extreme heating profile Orion experienced.
A key factor was the skip-entry technique Orion used to return from lunar distance. Rather than plunging straight into the atmosphere, the capsule dipped in, skipped back out briefly, then committed to a final descent. That profile subjects the heat shield to two separate heating pulses instead of one sustained burn. The Avcoat had not been fully tested against that double-pulse scenario before Artemis I flew, and the permeability shortfall only revealed itself under those real-world stresses.
The charred material shedding looked alarming in post-flight photographs, but NASA said the underlying structure of the heat shield remained intact throughout reentry.
NASA’s decision: fly the same shield, change the flight path
Rather than remove and replace the heat shield already bonded to the Artemis II Orion capsule, NASA chose to keep it and adjust the mission’s reentry trajectory instead. The agency announced it would modify the flight path to reduce the thermal loads that triggered the Artemis I anomaly, a decision detailed in an official update.
In practical terms, NASA is treating the char-loss behavior as a known, bounded risk that can be managed by how the spacecraft flies rather than by rebuilding its thermal protection between missions. The agency also said lessons from the investigation would be applied to heat shields for later Artemis flights, including missions that will land crews on the lunar surface.
That trade-off avoided the significant schedule delays and costs of swapping the shield, but it places added weight on the trajectory design to keep heating within margins the existing Avcoat can handle.
What NASA has not addressed directly
NASA’s formal communications have focused on the char-loss investigation and the Artemis II flight-readiness decision. What the agency has not done is issue a targeted, visual rebuttal of the “missing patch” claim. There is no public document or briefing that takes the specific photograph circulating online and annotates it to show: “This is a compression pad. Here is what it looks like in engineering drawings. Here is why it is not damage.”
The technical explanation exists across NASA’s own documentation, but connecting the dots requires reading separate sources about compression pad design and Avcoat performance. That is straightforward for engineers but not intuitive for a general audience encountering a dramatic-looking spacecraft photo on social media.
NASA has also released only high-level summaries of the arc-jet replication testing and trajectory mitigation analysis. Full datasets and peer-reviewed results have not been made public, which limits the ability of independent aerospace engineers and researchers to evaluate whether the trajectory changes alone provide sufficient margin or whether the Avcoat material itself needs further refinement for future missions.
What Artemis II’s post-flight inspection will reveal
For anyone tracking the program, the situation breaks down simply. The compression pads visible in official imagery are standard hardware, not evidence of damage. The genuine engineering challenge was the Avcoat char loss, and NASA’s response was to change how the capsule flies rather than rebuild the shield.
Whether that approach proves adequate will become clear when Artemis II returns from its lunar flyby and the heat shield undergoes the same painstaking post-flight inspection that followed Artemis I. That examination will close the loop between design intent, ground-test data, and the performance of a heat shield carrying a crew for the first time since Apollo. Until then, the distinction between a designed compression pad and actual thermal damage is worth getting right.
