Somewhere beneath the wheat fields of Kansas and the red rock of the Four Corners, the Earth may be doing something remarkable: splitting water molecules apart and releasing hydrogen gas, no factory required. In May 2026, the U.S. Geological Survey published the first coast-to-coast map showing where that process is most likely happening, transforming a geological curiosity into a concrete exploration target for the emerging clean-energy industry.

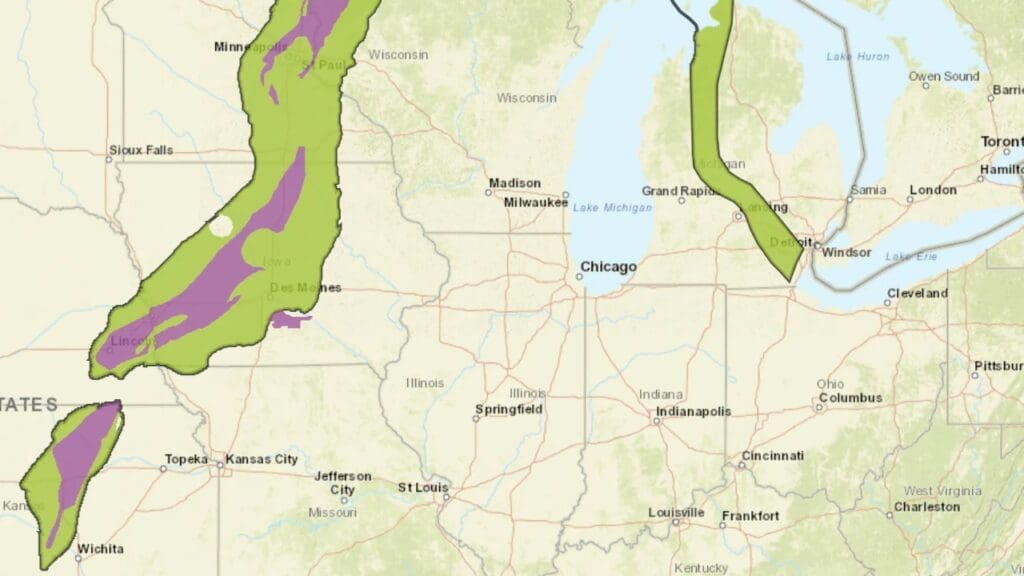

The map, released as Professional Paper 1900, highlights strong prospects across a mid-continent band stretching from Kansas through Iowa, Minnesota, and Michigan, along with the Four Corners region, California’s coast, and portions of the Eastern seaboard. A companion study estimates the total energy locked in geologic hydrogen worldwide could exceed all of Earth’s proven natural gas reserves. If even a sliver of that resource proves extractable, it could reshape how the country thinks about clean fuel.
How the Earth makes its own hydrogen
Geologic hydrogen, sometimes called “gold” or “white” hydrogen, forms through natural chemical reactions deep underground. The most common pathway is serpentinization: iron-rich minerals in the crust react with water at high temperatures, stripping oxygen atoms from H₂O and releasing free hydrogen gas. Other routes include radiolysis, where radiation from uranium and thorium in basement rocks breaks apart water molecules, and deep fault systems that channel those freed gases toward the surface.
None of this is new science. Hydrogen seeps have been documented for decades in Oman’s Samail ophiolite, in scattered wells across the American Midwest, and most notably at Bourakébougou, Mali, where a water well accidentally struck a hydrogen pocket in 1987 that has been generating electricity for a small village ever since. What has been missing is a systematic, national-scale effort to figure out where the geology is most favorable across the United States.
What the USGS map actually shows
The survey team built its assessment on the State Geologic Map Compilation, a standardized database of surface rock types and structures covering the contiguous 48 states. From that foundation, researchers assembled 44 data layers and two supporting tables, scoring every patch of the country for the geologic ingredients most closely linked to hydrogen generation: young granites, active faults, deep rift zones, and iron-bearing minerals capable of reacting with groundwater.
The resulting map does not claim hydrogen is flowing at any particular wellhead. Instead, it ranks regions by how many favorable factors overlap in the same place. An interactive explorer hosts 19 input maps and 7 integrated maps, letting anyone drill into which geologic variables drive the score for a given county.
The mid-continent corridor scores high largely because of the Midcontinent Rift, a billion-year-old fracture system that left behind iron-bearing rocks and deep fluid pathways. The Four Corners and California coast benefit from younger volcanic activity and fault networks that keep water circulating through reactive rock. Parts of the Appalachian belt also light up, thanks to ancient ophiolite sequences and deep basement faults.
A staggering energy estimate, with a big asterisk
In a peer-reviewed study published in Science Advances, USGS researchers Geoffrey Ellis and Eric Gelman modeled global geologic hydrogen resources and arrived at an energy-content estimate of roughly 1.4 × 1016 megajoules. For perspective, all proven natural gas reserves on Earth total about 8.4 × 1015 megajoules, according to the same assessment. That means the modeled hydrogen resource could hold about 1.7 times the energy of every known conventional gas deposit.
But the comparison demands careful reading. Proven natural gas reserves are volumes that have been drilled, tested, and judged economically extractable with current technology. The hydrogen figure is a model output, built on geochemical assumptions about what the Earth’s crust might contain. No one has measured most of it. Treating the two numbers as equivalents overstates the certainty of the hydrogen estimate. The resource is theoretically vast; whether meaningful quantities can be reached and pumped to the surface is an entirely open question.
Federal dollars are following the geology
The Department of Energy is not waiting for certainty. Through its Advanced Research Projects Agency-Energy program, DOE committed $20 million to 16 projects across eight states aimed at testing whether geologic hydrogen can actually be extracted at useful rates. The projects range from drilling test wells to developing soil-level sensors that can sniff out hydrogen seeping from below, along with modeling tools designed to predict where subsurface accumulations might be trapped in reservoir rock.
Twenty million dollars is modest by energy-research standards, roughly the cost of a single deepwater exploration well in the Gulf of Mexico. But it signals that federal agencies consider the resource plausible enough to put drill bits in the ground. Field data from diverse geologic settings should begin accumulating over the next few years, and those results will either validate or narrow the prospectivity scores the USGS has published.
Private capital is moving, too. Koloma, a Denver-based startup, raised $91 million in 2023 to explore for geologic hydrogen, and Natural Hydrogen Energy LLC has drilled test wells in Nebraska targeting hydrogen seeps first identified years ago. Neither company has announced commercial production, but their activity underscores that the USGS map lands in a market already primed for exploration.
The obstacles between map and wellhead
The gap between a color-coded prospectivity score and a producing hydrogen well is enormous, and several hurdles stand in the way.
No proven flow rates. No USGS or DOE source in the public record reports sustained hydrogen flow at any site identified by the new map. The 44 data layers describe geologic potential, not proven reserves. Without downhole measurements, the difference between a high-scoring county and a commercially viable hydrogen source remains unknown.
Unclear economics. The USGS data release contains no cost layers for drilling, gathering infrastructure, or surface processing, and the map products do not factor in distance to pipelines, power lines, or industrial hydrogen consumers. Geologic hydrogen would need to compete on price with green hydrogen (produced by electrolysis using renewable electricity) and gray hydrogen (made from natural gas with steam methane reforming), both of which already have established supply chains and known cost structures.
Regulatory gray zones. State mineral-rights frameworks were written for oil, gas, and hard-rock minerals. Hydrogen produced by natural geologic processes does not fit neatly into existing leasing or permitting categories in most states. A handful of jurisdictions, including South Australia, have begun drafting specific rules, but in the U.S. no state has enacted a comprehensive geologic-hydrogen regulatory framework. Until legislatures clarify who owns subsurface hydrogen and how extraction permits will work, commercial development faces legal uncertainty even where the geology looks promising.
What this means for the clean-energy race
For landowners, energy companies, and state officials scanning the USGS map, the current evidence supports curiosity and early-stage scouting, not full-scale development. The prospectivity scores can help prioritize where to acquire seismic data, run surface gas surveys, or negotiate access agreements, but they do not justify large capital commitments on their own. Think of the map as a first-pass filter: a way to rank regions for follow-up drilling, not a guarantee that any given lease block hides a hydrogen field.
For climate and energy planners, the implications are conditional but genuinely exciting. If even a fraction of the modeled geologic hydrogen can be produced at scale with low emissions, it could complement wind and solar electricity in sectors that are hard to electrify: steelmaking, ammonia production, long-haul shipping. Unlike green hydrogen, which requires massive amounts of renewable power to run electrolyzers, geologic hydrogen would arrive pre-made, its energy bill already paid by the slow chemistry of the Earth’s crust.
But “if” is doing heavy lifting in that sentence. Until flow tests deliver real numbers, lifecycle analyses confirm low emissions from extraction, and regulators build workable permitting systems, geologic hydrogen belongs in the category of emerging options rather than bankable supply. The USGS map and the Ellis-Gelman model have moved the idea out of speculation and into testable hypotheses. The next few years of drilling, data, and policymaking will determine whether those hypotheses become an industry.
