If you have ever glanced at the back of a laptop or the front panel of a desktop and spotted a USB port with an orange insert instead of the usual black or white, you probably wondered what makes it different. That color is not decorative. It signals a port built to deliver more charging current than a standard USB connection, and the technical specification behind it has a surprisingly formal origin story rooted in international standards bodies and silicon-level detection logic.
What BC1.2 Actually Defines
The orange color convention traces back to a specification called the Battery Charging Specification, Revision 1.2, published by the USB Implementers Forum (USB-IF). Often shortened to BC1.2, this document established how legacy USB ports (the rectangular USB-A connectors that predate USB-C) could safely deliver higher current to battery-powered devices. Before BC1.2, a standard USB 2.0 downstream port was limited to 500 milliamps, which meant charging a phone from a laptop was painfully slow. By allowing qualifying ports to supply up to 1.5 amps, BC1.2 effectively tripled the available power without requiring a new connector shape or forcing users to learn an entirely new physical standard.
The specification accomplishes this by defining three distinct port types: Standard Downstream Port (SDP), Charging Downstream Port (CDP), and Dedicated Charging Port (DCP). An SDP is the traditional data-and-power port capped at lower current, suitable for keyboards, mice, and flash drives. A CDP can transfer data while also supplying higher charging current, which is ideal for phones tethered to a PC. A DCP drops data transfer entirely and focuses on delivering maximum power, as you would see on many wall chargers. When a phone or tablet is plugged in, its charging controller checks voltage levels on the D+ and D- data lines to figure out which type of port it is connected to, then draws current accordingly. This detection handshake is what separates a BC1.2-compliant port from a generic USB socket that simply happens to have wires carrying five volts.
From Industry Spec to International Standard
BC1.2 did not remain a niche guideline circulated only among USB-IF members and chipset vendors. The specification was formally adopted into the EN 62680-1-1:2015 framework, an IEC and European standards designation that gave it institutional weight and a clear place in the broader family of USB-related norms. That adoption meant device makers, laptop manufacturers, and accessory companies across multiple continents could reference a single, recognized benchmark when designing charging hardware. It also meant compliance testing labs had a concrete document to verify against, rather than relying on informal agreements or proprietary interpretations between vendors.
This matters for consumers because it turned BC1.2 from a voluntary best practice into something closer to a measurable standard. When a manufacturer labels a port as a high-current charging port, the underlying electrical behavior is expected to match what BC1.2 prescribes, from current limits to detection behavior on the data lines. The formal IEC adoption gave regulators and engineers a shared reference point, which is part of why the orange color convention gained traction. Hardware makers needed a quick visual shorthand to tell buyers, “This port charges faster,” and orange became the de facto choice on many laptops and motherboards during the early 2010s. Even when the exact hue varied (some opted for yellow or a bright amber), the idea was the same: distinguish enhanced charging ports at a glance.
How Devices Detect a Charging Port
The practical magic happens at the silicon level. When you plug a phone into a USB port, the device’s charging integrated circuit performs a brief electrical test on the D+ and D- pins to determine what it is allowed to draw. As described in Microchip’s developer documentation on USB battery charging, a Dedicated Charging Port shorts the D+ and D- lines together through a defined resistance, which tells the attached device that no data host is present and it can safely pull higher current. A Charging Downstream Port, by contrast, presents a different signature that indicates both data transfer and elevated power are available, allowing the device to enumerate over USB while still charging more quickly than it would on a basic data-only port.
This detection sequence is invisible to users but determines whether your phone charges at a trickle or at a rate that actually makes a dent in the battery gauge during a short break. If the port cannot complete the BC1.2 handshake, the device defaults to the conservative 500-milliamp draw of a basic SDP to avoid overloading an unknown power source. That gap between 500 milliamps and 1.5 amps is the entire reason manufacturers bothered to color-code certain ports. Without the visual cue, a user would have no way to know which of several identical-looking USB-A sockets on a laptop would charge a phone three times faster. The silicon may be doing the negotiation, but the orange plastic insert is what invites you to plug into the right port in the first place.
The Color Is a Convention, Not a Rule

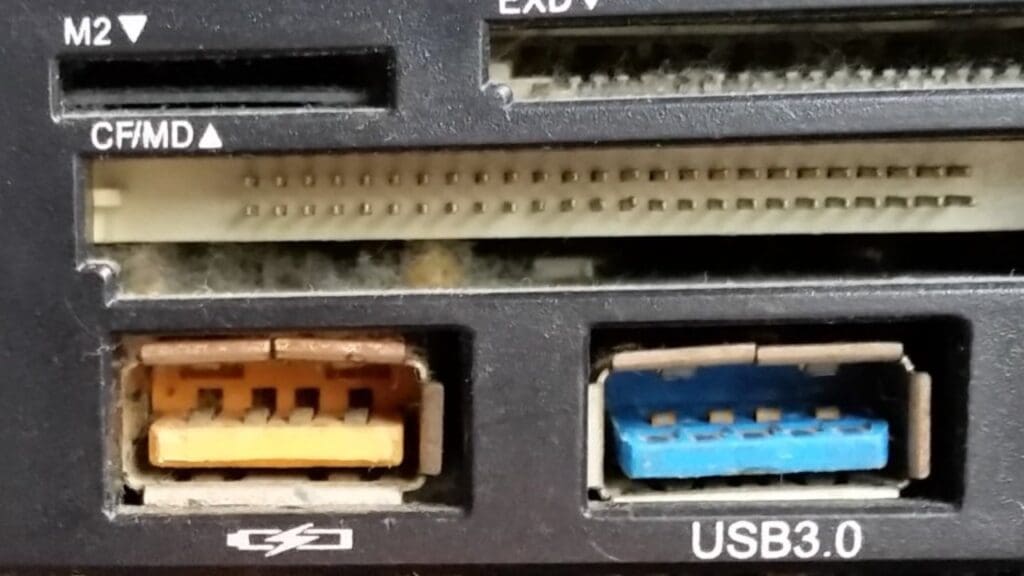

Here is the part that most tech explainers gloss over: BC1.2 itself says nothing about port color. The specification defines electrical behavior, detection protocols, and current limits. It does not mandate that compliant ports be orange, yellow, or any other color, nor does the EN 62680-1-1:2015 framework turn color into a regulatory requirement. The orange insert is a manufacturer convention that emerged organically as companies like HP, Dell, and Lenovo needed a way to differentiate their high-current USB-A ports from standard ones on the same chassis. Some vendors chose yellow instead. Others relied on small lightning bolt or battery icons printed next to the port, sometimes paired with the letters “SS” or “3.0” to indicate simultaneous support for faster USB data rates.
This lack of a formal color mandate creates a real gap between expectation and reality. Not every orange port on every device necessarily delivers 1.5 amps, and not every high-current port is orange. A few systems used orange inserts to indicate “sleep-and-charge” behavior (power available while the laptop is off) without guaranteeing BC1.2-compliant current levels. Conversely, many wall chargers and powered hubs that fully implement BC1.2 use plain white or black plastic with only printed labels to differentiate outputs. This is arguably the weakest link in the user experience chain around legacy USB charging. Blue ports, by comparison, became strongly associated with USB 3.0 data speeds, and that association was reinforced so consistently across the industry that most people now treat blue as a reliable indicator. Orange never achieved the same universal recognition, partly because BC1.2 compliance is harder for consumers to verify without plugging in a USB power meter or relying on careful reading of technical documentation.
Why Orange Ports Still Matter in a USB-C World
USB-C with Power Delivery has largely overtaken BC1.2 as the standard for fast charging on new devices. Modern laptops, phones, and tablets can negotiate power levels that go far beyond what any USB-A port was ever designed to supply, dynamically adjusting voltage and current to match each device’s capabilities. Yet orange USB-A ports remain common on desktop motherboards, docking stations, powered hubs, and older laptops still in active use. For anyone charging earbuds, older fitness trackers, e-readers, budget phones, or Bluetooth accessories that still ship with USB-A cables, these ports are often the most convenient way to get a faster charge without hunting for a dedicated wall adapter.
Because BC1.2 is baked into international standards, those legacy devices can usually count on predictable behavior: plug into a port that implements the specification correctly and, after the brief detection handshake, they can draw up to 1.5 amps without risking damage to either side. In mixed environments (think offices with a blend of old desktops and newer USB-C laptops), orange ports quietly bridge the gap between generations, providing higher-current charging to older gadgets even as flagship phones move on to USB-C and Power Delivery. The color alone is not a guarantee, but when it appears on a reputable brand’s hardware and is backed by documentation referencing the BC1.2 and EN 62680 families of standards, it is still a useful signal that this otherwise ordinary-looking USB-A socket is designed to charge your devices faster and more reliably than the plain black port next to it.
