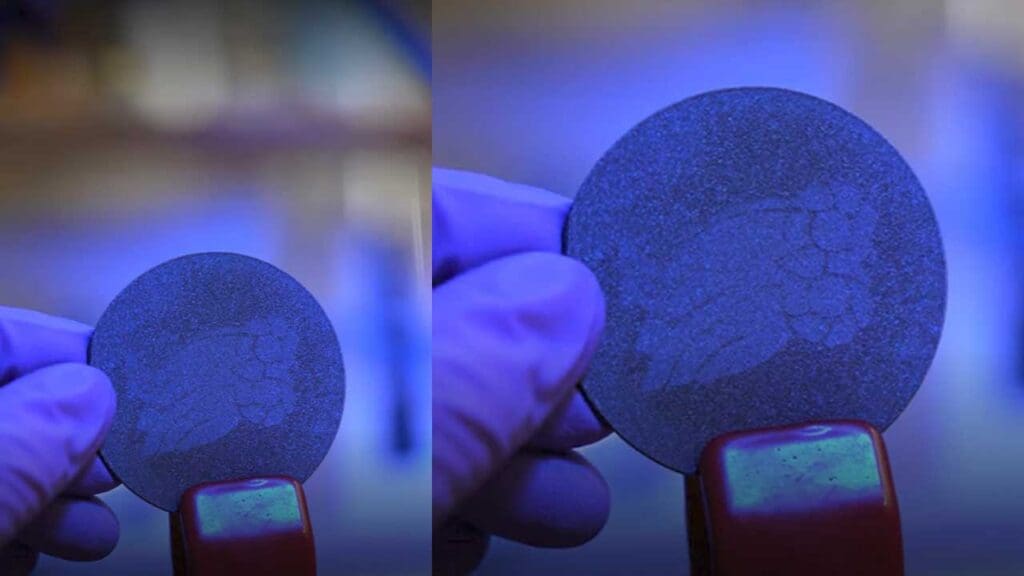

Researchers at Rice University report a method to grow diamond heat-spreading layers directly onto electronic devices, reducing operating temperature by about 23 °C (roughly 41 °F) in their reported tests. In the work, the researchers used microwave plasma chemical vapor deposition and patterned nanodiamond seeding to deposit diamond heat spreaders on 2-inch wafers in a way intended to avoid damaging underlying device layers. The result is a scalable cooling technique that could reshape thermal management for high-power electronics, from radar systems to 5G base stations.
How Diamond Tames Heat at the Chip Level
Diamond conducts heat better than virtually any other material. That property has long attracted engineers looking to pull excess energy away from transistors and power amplifiers. Yet growing diamond on top of a finished semiconductor device has been difficult because the process typically requires temperatures high enough to damage gate dielectrics and other sensitive structures. The Rice team’s approach addresses that problem by combining selective-area growth with photolithography and laser-cut film masks, placing diamond only where hotspots form rather than blanketing an entire wafer. This targeted deposition is meant to limit exposure of the rest of the device while concentrating thermal relief at the points that need it most.
The peer-reviewed study in Applied Physics Letters (AIP Publishing) reports that the diamond layer reduced device operating temperature by about 23 °C under high power dissipation conditions. That 41-degree-Fahrenheit drop matters because even a few degrees of cooling can extend transistor lifetimes and prevent the performance throttling that chips use to protect themselves from overheating. Prior work on integrating diamond onto GaN high-electron-mobility transistors had shown promising temperature drops, but the Rice method stands apart because it demonstrated the process on a full 2-inch wafer, a scale closer to commercial production than earlier bench-level experiments. It also suggests that diamond cooling can be engineered as a design parameter at the chip layout stage, rather than as a bulky packaging add-on applied after fabrication.
Seeding, Growth, and the Manufacturing Question
The technique relies on microwave plasma CVD, a well-established process in which carbon-rich gas breaks down inside a plasma chamber and deposits atom by atom onto a substrate. What makes the Rice work different is the seeding step: nanodiamond particles are placed in precise patterns using standard lithographic tools already common in chip fabrication lines. Earlier research on selective deposition on 100-millimeter AlGaN/GaN wafers used hot-filament CVD with lithographic patterning and nanodiamond seeding, but that approach required careful characterization with AFM, XRD, Raman spectroscopy, and SEM to confirm the underlying nitride layers survived. The Rice group’s microwave plasma variant offers a different thermal profile during growth, and the patterned seeding via laser-cut film adds a second, potentially cheaper masking option alongside photolithography.
A persistent challenge in diamond-on-semiconductor integration is the thermal boundary resistance at the interface between diamond and the device material. Even a thin layer of poorly conducting material at that junction can erase much of diamond’s cooling advantage. Recent interface-engineering work has shown that carbide interlayers between diamond and AlGaN can sharply reduce that resistance, and the preprint includes quantitative thermal boundary resistance values backed by microscopy of the interface structure. Whether the Rice process achieves similarly low boundary resistance is a question the published study will need to address in follow-up work; without that data, the 23-degree-Celsius figure represents the net benefit after whatever interface losses exist, which means the ceiling for improvement could be higher still. As researchers refine both seeding and interface chemistry, the same basic process could be adapted to larger wafers and to compound semiconductors beyond GaN.
Why Temperature Matters for Low-Temperature Growth
One of the trickiest trade-offs in diamond cooling is that conventional CVD diamond growth happens at temperatures above 700 degrees Celsius, well above the threshold that destroys many finished device layers. Separate peer-reviewed work in MRS Advances has explored growth at 300–400 °C specifically to enable post-fabrication integration without damaging gate dielectrics. Growing at lower temperatures, however, tends to produce diamond with more defects and lower thermal conductivity, so the field is caught between protecting the device and maximizing the heat-spreading benefit. The Rice team’s selective-area strategy partially sidesteps this dilemma by limiting diamond coverage to critical zones, reducing the total thermal load on the wafer during growth even if the plasma temperature remains relatively high.
An alternative path avoids growth altogether. A study published in Scientific Reports demonstrated direct bonding of InP and diamond substrates under atmospheric conditions, using surface activation and cleaning rather than high-temperature deposition. Bonding a pre-made diamond wafer to a device wafer eliminates the growth-temperature problem entirely, but it introduces new challenges around adhesion uniformity and the thermal resistance of the bonded interface. Each approach, whether growth or bonding, has distinct manufacturing constraints, and no single method has yet emerged as the clear winner for volume production. Continued validation through peer-reviewed channels will be important for comparing these strategies on equal footing and for building consensus around process windows that balance reliability, cost, and performance; preprint servers such as arXiv can help researchers share results early ahead of journal review.
What the 41-Degree Drop Means for Real Devices
High-power electronics already push thermal limits. GaN transistors used in 5G infrastructure, military radar, and electric-vehicle inverters generate intense heat in tiny active regions. When those hotspots climb past design thresholds, the device either throttles its output or degrades faster. Diamond’s appeal is that its superior thermal transport can spread that concentrated heat laterally before it builds up, letting the transistor run harder and longer. A 23-degree-Celsius reduction is not a marginal gain; in power amplifier design, that margin can translate into higher allowable junction temperatures, more output power at a given reliability target, or the ability to shrink bulky external heat sinks. For infrastructure operators, those shifts can mean smaller, lighter radio units and lower cooling costs over years of field operation.
At the same time, the Rice results should be viewed as a step in an evolving roadmap rather than an endpoint. The demonstrated temperature drop comes from a specific device geometry, wafer size, and power density, and real-world systems will impose additional constraints from packaging, solder joints, and system-level airflow. Future work will need to map how selective diamond placement interacts with circuit layout, how uniform the cooling benefit is across larger wafers, and how the process scales to industry-standard diameters. If those questions are answered positively, diamond heat spreaders grown directly on chips could move from laboratory demonstration to a standard tool in the thermal engineer’s kit, reshaping how designers think about the limits of high-power electronics.
