The Chrysler IV-2220 was conceived as a 16-cylinder Hemi aircraft engine that could have transformed American fighter performance in the final years of World War II, yet it never progressed beyond test beds and prototype airframes. Instead of powering combat sorties, this ambitious inverted V-16 became a case study in how fast-moving wartime priorities can sideline even the most advanced hardware. Its story still matters, because it shows how a single experimental powerplant helped bridge Detroit hot-rod thinking and front-line aviation engineering at a moment when piston engines were racing against the jet age.
How Detroit ended up designing a fighter engine
When the United States ramped up for World War II, the Army Air Forces needed more than just airframes, it needed a deep bench of engine builders who could deliver power, reliability, and volume. Chrysler, already a major automotive manufacturer with experience in high-output inline and V-type engines, was pulled into that effort as the services looked beyond traditional aircraft suppliers like Pratt & Whitney and Allison. The IV-2220 project grew out of that push, pairing Detroit mass-production know-how with the specialized demands of high-altitude, liquid-cooled fighter powerplants.
Instead of simply licensing an existing design, Chrysler engineers set out to create a clean-sheet engine that could compete with or surpass contemporary V-12s from Europe and the United States. The result was an inverted V-16 with hemispherical combustion chambers, a configuration that promised both compact packaging and serious power density for advanced fighters. Later coverage of this experimental program has highlighted how the company’s wartime engineering teams treated the IV-2220 as a showcase of what a Detroit-style Hemi could do in the air, rather than just under the hood of a car, a theme that resurfaces in modern retrospectives on this monster 16-cylinder Hemi.
The inverted V-16 layout and Hemi architecture
The IV-2220’s basic architecture was as radical as its mission. Instead of a conventional upright V, Chrysler chose an inverted V-16, with the crankshaft above and the cylinder banks hanging below, a layout that lowered the engine’s profile in the airframe and improved pilot visibility over the nose. Each bank carried eight cylinders, and the total displacement was 2,220 cubic inches, a figure that gave the engine its IV-2220 designation and placed it in the same general class as large V-12s while adding four extra cylinders for smoother power delivery.
Inside each of those cylinders, engineers used hemispherical combustion chambers, the same basic “Hemi” concept that would later become famous in Chrysler’s automotive lineup. The hemispherical shape allowed for larger valves and more efficient airflow, which in turn supported higher specific output at the high boost pressures required for fighter performance. Detailed technical writeups describe how this 10-foot-long, 16-cylinder block was packaged as tightly as possible for aircraft use, with the Hemi heads and inverted layout working together to keep frontal area in check despite the engine’s sheer size, a combination that has been dissected in depth in analyses of Chrysler’s biggest Hemi.
Power targets and performance on the test stand
From the outset, the IV-2220 was aimed at the upper tier of piston-engine performance, with power figures intended to match or exceed the best Allied fighters. Chrysler’s engineers targeted output in the 2,000 horsepower class, a level that would have put the V-16 in direct competition with late-war liquid-cooled engines like the Rolls-Royce Griffon and high-boost versions of the Allison V-1710. Achieving that kind of power from 2,220 cubic inches required aggressive supercharging, careful cooling, and meticulous attention to detonation control inside those hemispherical chambers.
On the test stand, the engine reportedly reached its design power range, validating the basic concept even if it never matured into a fully combat-ready unit. Surviving documentation and later technical summaries note that the IV-2220’s specific output and power-to-weight ratio were competitive for the era, especially considering that Chrysler was a newcomer to high-altitude aviation engines. That performance potential is one reason the surviving example at the Smithsonian’s National Air and Space Museum is described as an advanced inverted V-16, with curators cataloging the Chrysler XI-2220-11 engine as a significant experimental step in American powerplant development.
Why the Hemi V-16 never reached combat
Despite its promising numbers, the IV-2220 never powered operational fighters in World War II, and that gap between ambition and reality is central to understanding its legacy. Development took longer than planners hoped, and by the time the engine was ready for serious flight testing, the war’s priorities were shifting. Existing engines like the Pratt & Whitney R-2800 were already proven in combat, and the Army Air Forces were increasingly focused on jet propulsion, which was rapidly moving from experimental to operational status.
Technical teething problems also slowed the V-16’s path to the front line. Complex liquid-cooling systems, high boost pressures, and the sheer mechanical intricacy of a 16-cylinder inverted V created reliability challenges that had to be solved before any engine could be cleared for combat. Historical overviews of the program make clear that the IV-2220 remained in the prototype and test phase, never entering mass production or equipping front-line squadrons, a point underscored in detailed timelines of the Chrysler IV-2220 that track its development from concept to cancellation without any record of operational deployment.
The Republic XP-47H and other testbed airframes
Even though the IV-2220 never reached combat, it did leave the ground in prototype form, most notably in the Republic XP-47H program. Republic modified the robust P-47 Thunderbolt airframe to accept the liquid-cooled V-16 in place of its usual radial engine, creating a sleek, experimental variant intended to test whether the new powerplant could deliver higher speed and altitude performance. The inverted layout helped keep the nose profile relatively slim, and the Hemi heads were expected to support the high boost levels needed for a true high-performance interceptor.
Flight testing of the XP-47H provided valuable data on cooling, installation, and handling, but it did not lead to a production fighter. By the time the prototype flew, the strategic calculus had shifted toward jets and proven piston engines, leaving little appetite for a new, complex liquid-cooled design. Enthusiast discussions and archival notes on the Chrysler Hemi airplane engine emphasize that the XP-47H remained a test platform and that no squadron ever received the type for combat service, a reality that is repeatedly acknowledged in detailed forum threads on the Chrysler Hemi airplane engine and its limited flight history.
Inside the surviving museum engine

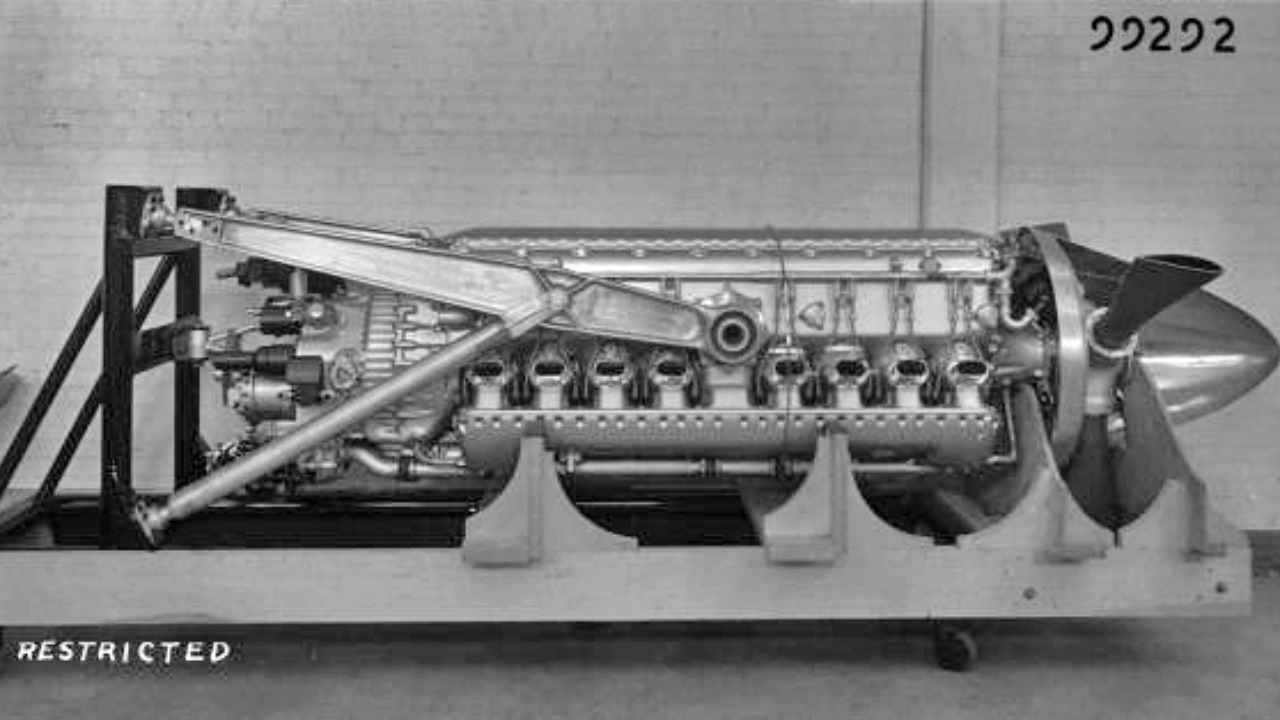

Today, the most tangible link to the IV-2220 program is the preserved engine on display in Washington, D.C., where visitors can see just how large and intricate this experimental powerplant really was. The Smithsonian’s catalog describes the unit as an XI-2220-11, an inverted V-16 with liquid cooling and a displacement of 2,220 cubic inches, reflecting its status as a refined test article rather than a mass-produced combat engine. The display highlights the compact frontal area relative to its length, a reminder of how much engineering effort went into fitting 16 cylinders into a fighter-friendly package.
Standing in front of the engine, it is easy to see the automotive DNA in the casting shapes and head design, even as the overall layout is pure aviation hardware. Curators note the advanced features that distinguished the XI-2220-11 from more conventional powerplants of the era, including its hemispherical combustion chambers and inverted configuration, which together made it a standout among experimental American engines. The museum’s documentation of the inverted V-16 display underscores that this surviving example never saw combat duty, instead representing a developmental branch that ended before it could influence wartime operations directly.
From wartime experiment to internet legend
In the decades since the war, the IV-2220 has taken on a second life as an object of fascination for gearheads and aviation buffs, especially as more archival photos and technical drawings have surfaced online. Modern writeups often frame it as the ultimate expression of Chrysler’s Hemi philosophy, scaled up for the sky and then frozen in time just as jets were about to take over. That narrative has resonated with enthusiasts who see the engine as a missing link between classic muscle-car Hemis and the high-performance piston fighters that closed out the propeller era.
Social media has amplified that fascination, with posts highlighting the engine’s size, cylinder count, and unrealized potential. One widely shared breakdown of the project describes how Chrysler built a single massive 16-cylinder Hemi that was poised to improve fighter performance but never got the chance, a story that has been retold in viral social media recaps that emphasize both its engineering audacity and its abrupt end.
How the Hemi mythos shapes perceptions of the IV-2220
Part of what keeps the IV-2220 in the spotlight is the enduring power of the Hemi brand itself. For many readers, the word “Hemi” immediately conjures images of 426-cubic-inch V-8s in late-1960s Dodge Chargers and Plymouth Road Runners, not experimental aircraft engines. When people discover that Chrysler once built a 2,220-cubic-inch, 16-cylinder Hemi for fighters, it feels like a hidden chapter in a familiar story, and that sense of discovery fuels ongoing interest in the engine’s history.
That brand recognition can also blur the line between what the engine was designed to do and what it actually accomplished. Some online posts and short summaries lean into the idea that this V-16 “powered” World War II fighters, even though the historical record shows it never equipped operational squadrons. More careful breakdowns, including enthusiast videos that walk through the engine’s specifications and development path, stress that the IV-2220 remained a prototype that flew only in testbeds, a nuance that is spelled out in detailed video explainers that separate the Hemi legend from the documented flight history.
What the IV-2220 reveals about late-war engine priorities
Looking at the IV-2220 in context, it becomes a lens on how rapidly the technological landscape shifted in the final years of World War II. When Chrysler began work on the engine, high-output piston powerplants were still the key to air superiority, and incremental gains in horsepower and altitude performance could decide air battles. By the time the V-16 was ready for serious testing, however, jet engines were moving from experimental curiosities to operational weapons, and the strategic value of a new, complex piston engine was no longer as clear.
The decision not to push the IV-2220 into production was not an indictment of its engineering so much as a reflection of that changing landscape. Existing radial engines were already delivering reliable performance in combat, and the resources required to debug and field a new liquid-cooled V-16 would have been substantial. Retrospectives on the program often note that the engine’s cancellation mirrored similar decisions in other countries, where advanced piston projects were shelved in favor of jets, a pattern that is echoed in modern commentary threads that frame the IV-2220 as a victim of timing rather than a technical failure.
The engine’s afterlife in photos, forums, and videos
Because the IV-2220 never became a production item, much of what people know about it today comes from photographs, surviving technical documents, and the preserved museum engine. High-resolution images of the V-16 on stands or installed in test airframes have circulated widely, giving enthusiasts a chance to study details like the exhaust layout, accessory drives, and coolant plumbing. Those visuals have become a kind of open-source archive, allowing anyone with an internet connection to zoom in on the hardware and appreciate just how ambitious the design really was.
Online communities have built on that visual record with deep-dive discussions and video breakdowns that reconstruct the engine’s story from scattered sources. Some posts focus on the sheer physical presence of the 10-foot-long block, sharing close-up shots of the Hemi heads and inverted layout, as in widely shared photo galleries that spotlight the engine’s scale. Others walk through the development timeline and test history, including video tours and animations that explain how the V-16 was supposed to work in flight, such as detailed technical breakdowns that bring the archival data to life for a new generation of viewers.
Why a prototype that never fought still matters
Even without combat sorties to its name, the IV-2220 occupies an important place in the broader story of American engineering in World War II. It represents a moment when automotive and aviation expertise converged, with Chrysler applying its Hemi know-how to one of the most demanding applications imaginable. The fact that the engine reached flight testing, even if only in prototypes, shows how far that cross-pollination could go when wartime urgency and industrial capacity aligned.
For me, the enduring appeal of this 16-cylinder Hemi lies in that tension between what it was built to do and what it actually did. It never powered operational fighters, yet it pushed the boundaries of piston-engine design and left behind a physical artifact that still draws crowds and sparks debate. Modern writeups that revisit the story of this ambitious V-16 project keep that conversation alive, reminding us that not every important wartime innovation shows up in combat reports. Some live on instead as prototypes, museum pieces, and, in the case of Chrysler’s biggest Hemi, as a powerful “what if” in the history of flight.
