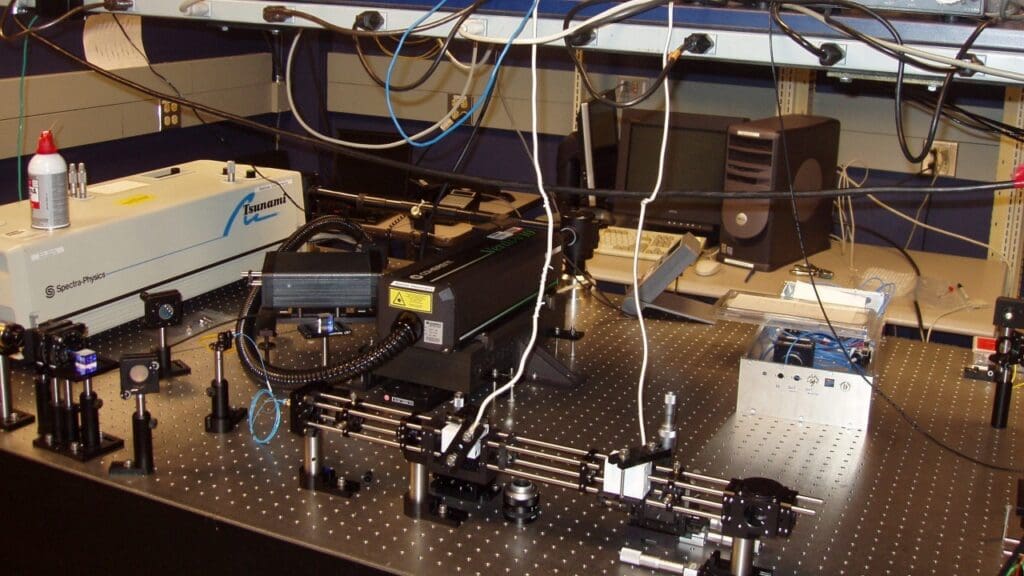

A string of recent experiments has moved desktop-scale particle accelerators from theoretical curiosity to working prototypes, with multiple research teams demonstrating that laser-driven devices etched into silicon chips or housed in portable enclosures can accelerate and steer electron beams at energies once reserved for building-sized machines. The results, spread across several peer-reviewed journals, suggest that high-energy physics experiments could eventually fit on a lab bench, cutting costs and opening access for universities, hospitals, and semiconductor fabs that cannot afford or house conventional accelerators.
Chip-Scale Acceleration Hits a New Threshold
The most striking proof of concept came from a nanophotonic dielectric laser accelerator that both accelerated and transversely confined electrons inside a 225-nanometer channel. That experiment recorded a maximum coherent energy gain of 12.3 keV and a 43% energy increase, boosting electrons from 28.4 keV to 40.7 keV over a distance of only 500 micrometers. Before this result, chip-based accelerators could push electrons forward but could not keep the beam focused, meaning particles scattered sideways and lost usefulness almost immediately.
Combining acceleration with transverse confinement in a single device solved a problem that had stalled the field for years. A Nature commentary on the Chlouba et al. result highlighted how the dual capability marks a milestone while also underscoring the barriers that still block practical scaling: staging multiple acceleration sections together, injecting electrons cleanly, controlling energy spread, and maintaining nanometer-level alignment across the device. Those constraints explain why no one has yet chained enough chip stages together to rival even a modest conventional linac, and why current demonstrations still operate at comparatively low beam energies.
Silicon-Pillar Designs Push Gradients Higher
Building on the confinement breakthrough, Broaddus and colleagues reported a pair of silicon-pillar dielectric laser accelerator designs that use pulse-front-tilted beams to drive electrons. Their structures targeted average acceleration gradients of 35 MeV/m and 50 MeV/m, a significant step toward making chip accelerators competitive with larger machines on a per-meter basis. The devices rely on alternating phase focusing to keep subrelativistic electrons on track, addressing the beam-steering gap that earlier single-stage devices left open.
Alternating phase focusing itself traces back to earlier theoretical work on strong focusing in radio-frequency linacs, including models developed in the mid-1990s that described how phase alternation in accelerating fields can confine charged particle beams. Translating those concepts into nanofabricated silicon pillars required careful control of laser phase, incidence angle, and microstructure geometry, but the payoff is a stable channel that can both accelerate and guide electrons over multiple optical cycles.
A separate line of work has extended dielectric laser acceleration into the mid-infrared regime, using 10-micrometer drive light in dual-pillar silicon structures and reporting damage and field-handling metrics that speak directly to durability. Driving a microfabricated structure harder means more energy per stage, but only if the material survives repeated pulses without cracking or melting. The mid-infrared experiments suggest that silicon can tolerate the intense fields required, removing one of the practical objections to scaling these devices beyond single-shot demonstrations and toward kilohertz or megahertz repetition rates.
Portable Laser-Plasma Accelerators Leave the Lab
While chip-based accelerators shrink the acceleration channel to the nanometer scale, a parallel effort has focused on making laser-plasma accelerators small enough to transport. A recent Scientific Reports study demonstrated a compact, transportable laser-plasma accelerator producing MeV-range electron and photon output. The apparatus includes an in-air laser path before the vacuum chamber, a compact target area, and a magnet spectrometer configuration, all packaged for mobility rather than fixed installation in a dedicated accelerator hall.
The distinction matters because MeV-range beams are already useful for medical imaging, radiation therapy calibration, and nondestructive testing of industrial components. A device that can be wheeled into a clinic or a factory floor changes the economics of access. Conventional accelerators that produce similar beams require dedicated shielding vaults and permanent infrastructure, putting them out of reach for most smaller institutions. The transportable design trades peak performance for practicality, a tradeoff that may prove more valuable in the near term than chasing the highest possible energy on a chip, especially for users who need reliable, moderate-energy beams rather than frontier physics.
Laser-plasma accelerators also underpin some of the most ambitious concepts for compact light sources. Work on optimized wakefield stages has shown how carefully shaped laser pulses can drive plasma waves that generate high-quality electron bunches, suitable for downstream applications such as compact free-electron lasers. Although these wakefield experiments still require powerful lasers and precise plasma targets, they point toward a future in which portable or at least room-sized systems can deliver beam parameters that once demanded kilometer-scale facilities.
AI and Federal Funding Accelerate the Design Cycle
Designing these compact systems involves optimizing thousands of interacting parameters, from pillar spacing and laser timing to beam injection angles and plasma density profiles. Traditional trial-and-error approaches, even when guided by analytical theory, struggle to keep pace with the combinatorial design space. That is pushing accelerator physicists toward machine learning tools that can capture subtle correlations and nonlinearities in beam dynamics.
A team of data scientists and accelerator experts at Jefferson Lab, working with U.S. national laboratory partners, has developed machine learning models that transparently represent the physics of the Continuous Electron Beam Accelerator Facility, or CEBAF. The group’s work, described in a recent report, shows how AI can learn accelerator behavior in a way that is both predictive and interpretable, offering a template for applying similar methods to chip-based and laser-plasma systems. By rapidly exploring design variations in silico, these models could shorten the time between concept and prototype and help identify operating windows that balance gradient, stability, and component lifetime.
Federal money is backing this convergence of AI and accelerator physics. The U.S. Department of Energy supports related efforts through its Advanced Scientific Computing Research, Office of Nuclear Physics, and Office of Fusion Energy Sciences programs. That multi-office investment signals a bet that compact accelerators are not just a physics curiosity but a strategic technology with applications across defense, energy, and health, from isotope production to materials qualification and advanced manufacturing.
From X-Rays on a Chip to Free-Electron Lasers
The end goal for many of these research threads is not simply smaller accelerators but entirely new light sources. Dielectric laser accelerators on silicon could, in principle, drive miniature undulators or inverse Compton scattering setups to generate coherent x-rays on a chip, enabling table-top crystallography, nanoscale imaging, and ultrafast pump–probe experiments. In parallel, laser-plasma accelerators are being engineered to feed compact free-electron lasers that emit in the extreme-ultraviolet and soft x-ray bands, leveraging the high peak currents achievable in short plasma-accelerated bunches.
Researchers involved in laser wakefield work emphasize that compact x-ray free-electron lasers could transform fields as diverse as life sciences, materials science, and semiconductor development. Instead of competing for limited beam time at a handful of national facilities, researchers might someday run time-resolved diffraction experiments or study phase transitions in-house. For chip-based accelerators, similar aspirations include integrating beamlines directly into semiconductor fabs for inline inspection or embedding ultrafast electron microscopes into standard laboratory workflows.
Substantial obstacles remain. Chip-scale devices must still demonstrate staging of many acceleration sections without losing phase control, while portable laser-plasma systems need improved stability, higher repetition rates, and robust alignment in non-laboratory environments. Radiation shielding, regulatory approval, and user training will all shape how quickly these technologies move from prototype to product. Yet the trajectory is clear: a combination of nanofabrication, high-power lasers, AI-informed design, and sustained federal funding is steadily eroding the size and cost barriers that have long defined accelerator science.
If those trends continue, the next generation of particle accelerators may look less like monumental machines and more like specialized instruments, some etched onto wafers, others rolling between labs on carts. Whether they are probing fundamental particles, imaging tumors, or inspecting chips, the same underlying advances in compact acceleration could bring capabilities once confined to national facilities into everyday scientific and industrial practice.
