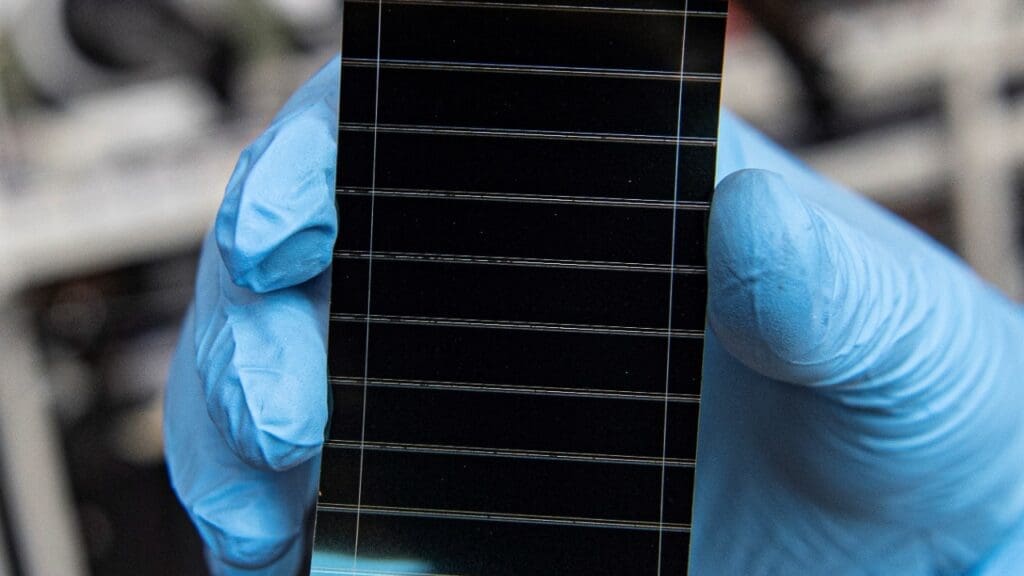

Perovskite solar cells have surged from laboratory curiosities to serious contenders against silicon in barely a decade, yet the physics behind their remarkable energy harvesting has remained partly mysterious. A cluster of recent peer-reviewed studies now points to three distinct mechanisms working in concert: built-in electric fields at nanoscale domain walls, a dielectric shielding effect that neutralizes defects, and an unusual slowdown in hot-carrier cooling that lets the material capture energy other semiconductors simply waste as heat. Together, these findings explain why a crystal structure riddled with imperfections can still convert sunlight at efficiencies that rival the best commercial panels.
Domain Walls Act as Built-In Charge Highways
The most persistent puzzle about perovskites is structural. Many high-performing compositions adopt a cubic crystal phase that, in theory, should lack the internal electric polarization needed to separate electrons from holes efficiently. A study in lead-halide perovskites resolves that contradiction by showing that flexoelectric domain walls, thin boundaries where the crystal lattice bends slightly, generate local electric fields strong enough to guide charge carriers toward collection electrodes. Those internal fields function like one-way lanes on a freeway: once an electron or hole reaches a domain wall, it is swept toward the contact layer rather than drifting back and recombining.
This mechanism matters because it decouples performance from crystallographic perfection. Silicon cells demand extremely low defect densities to work well, which is why their manufacturing requires energy-intensive purification. Perovskites, by contrast, are “a million times more defective, and yet it is still a very good solar cell,” as Cornell researchers have noted. The flexoelectric domain-wall picture explains why: even in a defect-rich lattice, the network of internal fields provides alternative pathways for carriers to escape before they are trapped, effectively turning structural complexity into an asset rather than a liability.
Dielectric Screening Shields Defects and Cuts Losses
Domain walls are only part of the story. A separate device-physics investigation in high-quality films examined how the perovskite lattice itself suppresses the damage defects normally cause. The study found that the material’s strong dielectric response reduces defect capture cross-sections, weakens electron-phonon coupling, and lowers surface recombination, a trio of benefits collectively described as dielectric screening. The practical payoff was a device delivering a power conversion efficiency of 22.3% with an open-circuit voltage of 1.25 V and a voltage deficit of just 0.37 V against a bandgap of roughly 1.62 eV. That voltage deficit is strikingly small; it means the cell wastes very little of the energy each photon delivers and approaches the radiative limit more closely than most solution-processed semiconductors.
Dielectric screening also helps explain why perovskites convert a broad spectrum of sunlight into usable electricity more efficiently than silicon. Because defect-related losses are suppressed across a wide energy range, carriers generated by both high-energy blue photons and lower-energy red photons survive long enough to reach the electrodes. The net effect is a material that tolerates cheap, low-temperature fabrication while still approaching the thermodynamic limits of single-junction performance, an unusual combination that underpins the rapid climb in certified efficiencies over the past decade.
Hot Carriers Cool Slowly, Preserving Extra Energy
When a photon with energy well above the bandgap strikes a semiconductor, it creates a “hot” carrier with excess kinetic energy. In silicon, that excess converts to heat within femtoseconds, wasting potential voltage. Perovskites behave differently. Ultrafast spectroscopy measurements show that initial thermalization in organic-inorganic lead halide perovskites occurs within roughly 100 femtoseconds, but a phonon bottleneck then substantially slows further cooling at higher excitation densities. In MAPbI3 specifically, the longitudinal optical phonon lifetime reaches approximately 0.6 plus or minus 0.1 picoseconds at moderate carrier densities near 1018 per cubic centimeter, extending the window during which hot energy can be harvested and enabling quasi-equilibrium carrier populations at elevated temperatures.
The effect becomes even more pronounced in nanostructured perovskites, where confinement alters phonon dispersion and carrier-phonon interactions. Colloidal perovskite nanocrystals exhibit hot-carrier cooling rates roughly two orders of magnitude slower than bulk films, and researchers have demonstrated hot-electron injection efficiencies up to about 83% with an injection time near 0.2 picoseconds into suitable acceptor layers. These ultrafast transfer pathways suggest that future device architectures could capture a significant fraction of above-bandgap energy before it thermalizes, pushing single-junction efficiencies closer to theoretical ceilings that silicon cannot approach, and opening a route toward practical hot-carrier solar cells.
Record Efficiencies and the Stability Question
These physical advantages translate directly into device records. A study focused on interfacial contact engineering reported a perovskite cell reaching 27.02% efficiency, with a certified value of 26.96%, by tailoring the contact layers to raise defect formation energies, tune the work function for better carrier extraction, and block ion diffusion. Those results place perovskites in the same performance class as the best crystalline silicon cells tracked on the NREL efficiency chart, despite relying on solution processing and relatively low-temperature fabrication. The rapid pace of improvement underscores how quickly fundamental insights into domain walls, dielectric behavior, and hot-carrier dynamics can be translated into practical performance gains.
Yet stability remains the central hurdle between laboratory promise and commercial deployment. The same soft lattice and mobile ions that enable defect tolerance and tunability also make many compositions vulnerable to moisture, oxygen, heat, and prolonged illumination. Reports on perovskite modules emphasize that devices can degrade under real-world operating conditions unless carefully encapsulated and chemically stabilized. Researchers are attacking the problem through compositional engineering, robust charge-transport layers, and barrier coatings, but long-term field data are still sparse compared with the decades of reliability records that underpin today’s silicon industry.
From Exotic Physics to Scalable Technology
What makes the current moment pivotal is that the exotic physics of perovskites is increasingly being harnessed in device designs that look manufacturable at scale. Domain-wall engineering, once a purely academic topic, is informing growth strategies that control grain size and orientation to maximize internal electric fields without sacrificing film continuity. Dielectric screening is being enhanced through compositional tuning and interface passivation, allowing thin films to maintain high voltages even as they are scaled up to module dimensions. At the same time, insights into hot-carrier dynamics are guiding the choice of contact materials and nanostructures that can extract energetic carriers fast enough to matter under realistic sunlight intensities.
Looking ahead, the convergence of these mechanisms could enable architectures that go beyond simple single-junction cells. Tandem stacks pairing perovskites with silicon or other absorbers are already edging toward the limits suggested by detailed-balance calculations, and concepts based on hot-carrier extraction hint at even higher ceilings if phonon bottlenecks can be controlled in large-area devices. The remaining challenges, chiefly long-term stability, environmentally benign compositions, and reproducible large-scale manufacturing, are substantial but no longer appear insurmountable. As fundamental understanding deepens and record efficiencies continue to climb, perovskite solar cells are moving from a curiosity defined by surprising physics to a technology candidate capable of reshaping the economics and design of future photovoltaic systems.
