Researchers at the Massachusetts Institute of Technology have built an ultrasound wristband that translates natural hand and finger movements into commands for a robotic hand, letting wearers direct a machine to play piano keys, shoot a basketball, or manipulate objects in a virtual environment. The system, described in a Nature Electronics study, tracks 13 degrees of freedom in real time using a single transducer strapped to the forearm. It represents a sharp departure from conventional electromyography-based interfaces and could reshape how humans interact with robots, prosthetics, and digital environments.
How a Single Transducer Reads the Forearm
Most wearable devices that decode hand intent rely on surface electrodes that pick up electrical signals from muscles. Those signals tend to be noisy and can be difficult to interpret, especially when distinguishing subtle finger movements or complex combinations of joints. The MIT wristband takes a different approach: it fires ultrasound pulses into the forearm and listens for echoes bouncing off muscles, tendons, and bones. The technique, called echomyography, captures the mechanical deformation of tissue rather than its electrical activity, which gives the system a richer picture of what the hand is doing.
The peer-reviewed paper describes a wearable echomyography system that tracks dynamic hand motions across 13 degrees of freedom from forearm ultrasound signals. That count covers the independent axes of rotation in the wrist, thumb, and four fingers, enough to reconstruct a full hand pose in real time. A customized deep learning algorithm processes the raw radio-frequency signals and maps them to joint angles without requiring bulky imaging hardware or a trained sonographer. According to an institutional news release, the researchers engineered the transducer and strap so that the device stays aligned with the underlying anatomy even as the user moves, a key requirement for stable decoding.
Piano Keys, Basketballs, and Virtual Objects
The research team tested the wristband in several scenarios designed to stress different aspects of dexterity. In one demonstration, wearers moved their fingers to direct a robot to play piano or shoot a basketball. In another, they manipulated objects in a virtual environment, a task that requires continuous, proportional control rather than discrete gesture classification. The system also demonstrated controlling a robotic arm by mapping wrist pitch, showing that the same hardware can handle both fine finger work and broader arm-level commands.
These are not simple on-off gestures. Playing a piano key requires graded force and precise timing across individual fingers. Shooting a basketball demands coordinated wrist extension and release, with smooth transitions between phases of motion. The fact that a single ultrasound element on the forearm can capture enough information for both tasks suggests that the muscle deformation patterns in the forearm encode far more hand-state detail than electrical surface signals typically reveal. It also hints that a relatively narrow acoustic “view” of the limb, when paired with a sufficiently powerful learning model, can stand in for far more complex imaging setups.
Why Ultrasound Outperforms Electrical Sensing
Earlier work had already shown that wearable ultrasound could decode wrist and hand kinematics. A study in a neural engineering journal demonstrated simultaneous prediction of wrist and hand motion from ultrasound sensing, establishing a baseline for accuracy and constraint. That research typically relied on arrays of transducers arranged around the limb, which increased spatial coverage but also made the devices bulkier and more power-hungry.
What the MIT system adds is a dramatic reduction in hardware complexity: instead of an array of transducers, it uses one, which cuts power draw, shrinks the device footprint, and makes the wristband practical enough for daily wear. A companion piece in a related editorial highlights that the system achieves hand-gesture recognition from single-channel ultrasound RF signals using a tailored deep learning architecture. That framing matters because it signals that single-transducer echomyography is not merely a proof of concept but a viable architecture for future wearable interfaces.
Compared with surface electromyography, ultrasound has several inherent advantages. Mechanical deformation patterns are often more localized than electrical fields, which can smear across tissue and electrodes. Ultrasound can also sense deeper muscles that contribute to fine motor control but are difficult to isolate electrically from the skin surface. By tapping into both superficial and deeper structures, the wristband can differentiate between motions that might look nearly identical to an electrode array.
What This Means for Prosthetics and Limb Loss

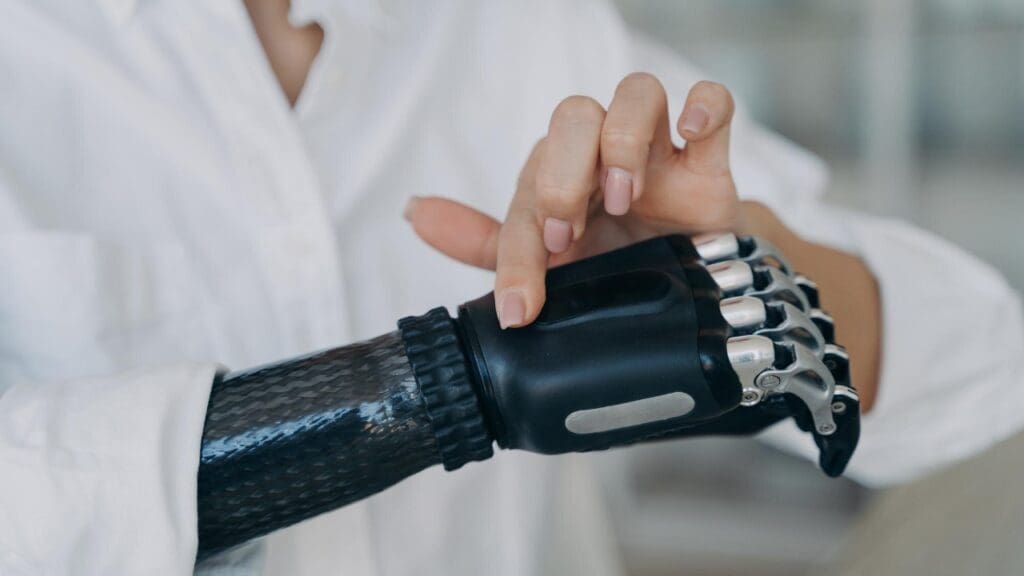

The clearest near-term beneficiaries are people with upper-extremity limb loss. Existing powered prosthetic hands typically rely on one or two surface electromyography channels, which limits users to toggling between a handful of pre-set grips. Many users report that such systems feel unintuitive and require constant mode switching or co-contraction tricks that do not resemble natural hand use.
Research published in a 2019 sonomyography study has already shown that ultrasound-based muscle imaging provides intuitive, proportional control across multiple degrees of freedom for individuals with upper extremity limb loss. Those experiments suggested that changes in muscle thickness and shape correlate well with intended motion, enabling more fluid control of prosthetic devices. The MIT wristband extends that principle by proving that a single transducer can capture enough data for real-time, high-dimensional control, not just a few preset patterns or simple grasp types.
Still, the published demonstrations involved healthy subjects, not amputee users. Translating the technology to a residual limb introduces complications: muscle geometry changes after amputation, tissue properties vary between individuals, and the transducer must maintain consistent contact despite prosthetic socket dynamics. No clinical trial data with amputee participants has been reported for this specific wristband, a gap that will need closing before the device can move from lab to clinic. Regulatory pathways will also require evidence that the system remains reliable under sweat, temperature changes, and the mechanical stresses of daily life.
Technical Hurdles That Remain
A recent review article in Nature Reviews Bioengineering surveys wearable ultrasound systems and identifies several technical constraints that apply directly to this work: power consumption, packaging, resolution, and the challenge of extending sensing to three dimensions. The MIT device sidesteps some of these by using a single transducer, but that choice also limits spatial resolution. A one-element probe captures a single line of echoes, so the deep learning model must infer the full hand state from a relatively narrow slice of tissue information. While the reported experiments show that this is feasible in controlled conditions, performance in more variable real-world settings remains an open question.
Power and battery life are also unresolved. Ultrasound transmission and reception consume more energy than passive electrode sensing, and the onboard neural network adds computational overhead. The published paper does not include long-term wearability data or battery endurance figures, so it remains unclear how the device would perform over a full workday rather than a short lab session. Future iterations may need dedicated low-power signal-processing chips or offloading strategies to smartphones or nearby computers to keep energy demands in check.
Cost and manufacturing scalability are similarly unaddressed in the current reporting. Custom ultrasound transducers, flexible housings, and robust coupling materials can be expensive to prototype, and bringing such hardware to consumer or clinical markets typically requires re-engineering for mass production. Ensuring consistent acoustic performance across units, especially when devices must conform to different forearm sizes and shapes, will be a nontrivial task for manufacturers.
From Lab Demo to Everyday Interface
Beyond the technical details, the wristband points toward a broader shift in how people might interact with machines. If a single, comfortable device can continuously decode natural hand intent, it could supplant the mix of joysticks, buttons, and touchscreens that currently mediate human-robot interaction. Industrial workers might guide collaborative robots with subtle wrist motions, surgeons could manipulate remote instruments with more nuanced control, and gamers could inhabit virtual hands that move as fluidly as their own.
Realizing that vision will require progress on several fronts: robust calibration that adapts to day-to-day changes in the user’s physiology, interfaces that let people quickly personalize control mappings, and safety mechanisms that prevent unintended motions from triggering hazardous actions. The MIT prototype does not yet answer all of these questions, but it demonstrates that rich, high-dimensional control is possible with surprisingly little hardware.
For now, the ultrasound wristband stands as a compelling example of how advances in sensing and machine learning can unlock new forms of embodiment. By reading the subtle choreography of muscles beneath the skin, it offers a path toward prosthetics and robotic systems that respond less like tools and more like extensions of the human body.
