UCLA scientists have developed a modern version of Thomas Edison’s nickel-iron battery that can recharge in seconds and survive more than 12,000 charge-discharge cycles, a performance leap that could reshape how engineers think about grid-scale energy storage, The advance relies on shrinking the active electrode materials to sub-5-nanometer clusters and embedding them in a carbon aerogel conductor, turning a chemistry that Edison patented more than a century ago into something fast enough to rival supercapacitors. Whether this lab-scale result can translate into commercial hardware remains an open question, but the underlying science addresses real weaknesses that have kept nickel-iron cells on the sidelines since the internal combustion engine displaced early electric cars).
Edison’s Forgotten Chemistry Gets a Nano-Scale Overhaul

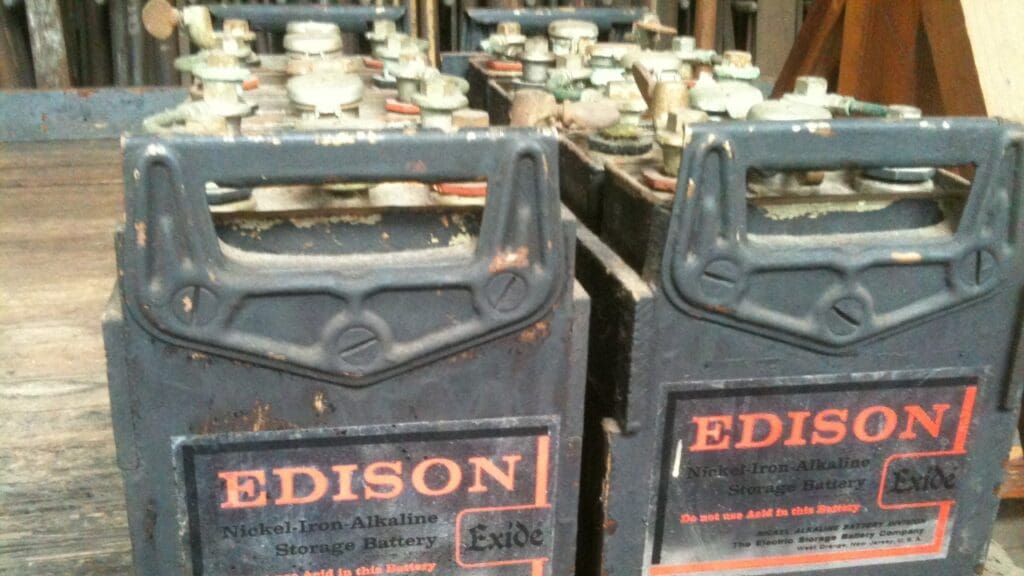

Thomas Edison filed his reversible galvanic battery patent on October 8, 1901, describing a storage cell built from nickel and iron electrodes in an alkaline electrolyte. The design was tough and long-lived, but it charged slowly and delivered modest power, two traits that made it a poor match for the automobile market once gasoline engines improved. Edison’s battery found a second life in railroad signaling and industrial backup power, yet it never achieved the speed or energy density needed for broader adoption.
The UCLA team attacked those exact limitations by rethinking electrode architecture at the nanometer scale. Instead of bulk metal plates, the researchers used protein-templated nickel and iron nanoclusters, each smaller than 5 nanometers, and locked them into a graphene-derived aerogel that serves as both a structural scaffold and an electrical highway. The protein-templating step controls particle size with unusual precision, while thermal processing converts the organic framework into a lightweight carbon conductor. That combination shortens the distance ions must travel during charge and discharge, which is the core reason traditional nickel-iron cells were so sluggish. The Small journal article details the full electrode fabrication sequence and electrochemical test protocols, including C-rate measurements that quantify how quickly the cell can accept and release energy.
Seconds to Recharge, Thousands of Cycles to Degrade
The headline numbers from the UCLA work are striking: recharging measured in seconds and stable operation past 12,000 charge-discharge cycles. For context, many lithium-ion cells used in consumer electronics begin to lose noticeable capacity after roughly 500 to 1,000 full cycles, and even high-end lithium iron phosphate cells marketed for grid storage typically target 3,000 to 6,000 cycles. A nickel-iron cell that lasts well beyond 12,000 cycles while accepting charge almost instantly would occupy a different performance category entirely, closer to a supercapacitor in speed but with the energy-storing character of a true battery. The UCLA newsroom piece frames the advance as a direct descendant of Edison’s original concept, updated with 21st-century nanomaterials.
These results did not emerge from nowhere. A widely cited earlier study in Nature Communications demonstrated that coupling nickel and iron nanoparticles with nanocarbon hybrids, including graphene and carbon nanotubes, could boost charge-discharge rates by nearly 1,000 times compared to conventional nickel-iron cells. That work reported charging in roughly two minutes and discharging in about 30 seconds, along with specific energy and power figures and cycling data that established a credible baseline. The UCLA study builds on that foundation by replacing the earlier nanocarbon scaffolds with a protein-derived aerogel route, which may offer simpler and more scalable fabrication. A separate Nature access page underscores how widely that earlier nickel-iron work is referenced within the broader battery community.
Real-World Hurdles: Efficiency and Gassing
Fast lab results do not automatically translate into practical grid hardware. One persistent concern with nickel-iron batteries is that overcharging causes the alkaline electrolyte to decompose water into hydrogen and oxygen, a phenomenon engineers call gassing. A Frontiers in Energy Research paper that characterized a nickel-iron “battolyser,” an integrated battery and electrolyser, found that while gassing can be harnessed deliberately to produce hydrogen fuel, it also reduces round-trip electrical efficiency. For a pure storage application, every watt-hour lost to electrolysis is energy that never comes back to the grid. The UCLA team’s seconds-scale recharging could actually intensify this problem if the cell is driven hard at very high C-rates, because faster charging pushes electrode potentials further into the water-splitting regime.
No publicly available cost breakdown or manufacturing scalability assessment accompanies the UCLA study, which is typical for early-stage academic research but leaves a significant gap for anyone trying to forecast commercial viability. Nickel and iron are far cheaper and more abundant than cobalt or lithium, which gives the chemistry a raw-materials advantage. Yet the protein-templating and aerogel-processing steps introduce complexity that bulk nickel-iron cells never required. Whether those steps can be performed at industrial scale, and at what cost per kilowatt-hour, is a question the published data does not yet answer. Broader analyses of battery economics, such as a Nature commentary on materials constraints, suggest that abundant elements are only one part of the cost picture; manufacturing throughput, yield, and system-level efficiency can be equally decisive.
Why Speed Alone Does Not Dethrone Lithium-Ion
Most coverage of ultrafast battery research focuses on recharge time as the decisive metric, but grid operators and electric-vehicle engineers weigh a broader set of trade-offs. Energy density, safety, efficiency, and integration costs all shape technology choices. Lithium-ion chemistries, despite safety incidents and resource concerns, offer a combination of high energy density and well-understood manufacturing that makes them hard to displace. A battery that charges in seconds but stores relatively little energy per kilogram, or loses a significant fraction of its input as heat and gas, may be attractive for niche applications yet still fall short for mainstream electric vehicles or long-duration grid storage.
Nickel-iron cells also operate at lower voltages than many lithium-ion variants, which means more cells in series to reach a given system voltage and potentially more complex pack management. The battolyser work shows that under certain operating regimes, nickel-iron systems can double as hydrogen generators, but this hybrid role adds design complexity and is not always desirable for straightforward storage. Peer review and editorial standards at venues such as Frontiers publishing platforms and community discussions on forums like the Frontiers research forum emphasize that promising lab metrics must be interpreted in the context of duty cycles, ambient conditions, and realistic maintenance schedules. From that vantage point, the UCLA nickel-iron breakthrough looks less like a direct lithium-ion replacement and more like a specialized tool for applications where extreme cycle life and rapid bursts of power matter more than compact size.
Where Edison’s Chemistry Might Fit in Tomorrow’s Grid
If the UCLA architecture can be scaled, its most natural home may be in stationary storage rather than vehicles. Grid operators increasingly need fast-response assets to smooth fluctuations from wind and solar, handle frequency regulation, and provide short-duration backup during faults. For these services, ultra-long cycle life and second-scale response can be more valuable than high energy density. A rugged nickel-iron system that tolerates deep cycling and occasional overcharge (perhaps even using controlled gassing to feed local hydrogen uses) could complement, rather than compete with, lithium-ion packs that handle bulk energy shifting over hours.
Realizing that vision will require more than clever nanostructuring. Engineers will need to demonstrate pack-level efficiency, robust gas management, and manufacturable electrode recipes that do not depend on exotic or fragile processing steps. They will also have to show that the impressive 12,000-cycle performance holds under realistic grid duty cycles, not just idealized laboratory protocols. As the peer-reviewed evidence base grows through outlets like energy-focused journals and long-term field trials, a clearer picture will emerge of where a reinvented Edison battery belongs in the portfolio of low-carbon technologies. For now, the UCLA results stand as a proof of principle that even century-old chemistries can be radically reimagined when engineers are willing to redesign materials from the nanoscale up.
