Fine wood dust, the kind too small to see, poses serious health risks that most hobbyist woodworkers underestimate. A simple air scrubber built from a box fan and furnace filters can trap those invisible particles fast, and the whole project costs far less than a commercial unit. The design borrows from years of federal research into DIY air cleaners, giving weekend builders a tested blueprint rather than a guess, tying shop safety into the same filtration science used for wildfire smoke and respiratory viruses.
Why Workshop Dust Demands More Than a Shop Vac

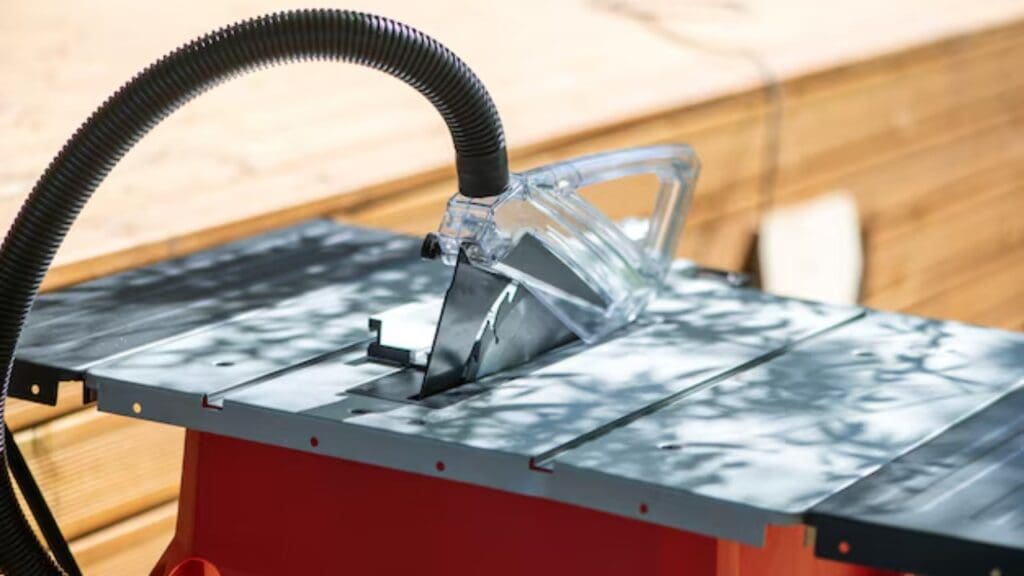

Power tools throw visible chips and sawdust across a shop, but the real hazard is respirable dust, particles fine enough to bypass the nose and settle deep in the lungs. The Occupational Safety and Health Administration documents that wood dust exposure causes respiratory irritation, asthma, sensitization, and, for certain hardwood species, elevated cancer risk. OSHA emphasizes engineering controls, especially local exhaust ventilation, as the primary line of defense. A dust collector at the tool catches the big stuff, but it does little for the fine haze that hangs in the air for hours after a cut, drifting into adjacent rooms and clinging to clothing and storage surfaces.
That lingering cloud is where an ambient air scrubber earns its place. The Environmental Protection Agency frames indoor air quality strategy as a three-part system: source control, ventilation, and filtration. A shop vac or dust collector handles source control at the tool. Opening a door or running an exhaust fan handles ventilation. But filtration, actively pulling room air through a filter to strip out suspended particles, is the third leg most home shops lack. Guidance on portable air cleaners during the COVID-19 pandemic underscores how much properly sized filtration can reduce airborne particle levels in occupied spaces, and the same physics applies to wood dust. A cheap DIY unit fills that gap without the $300-plus price tag of a ceiling-mounted commercial scrubber.
Parts List and Assembly in Under an Hour
The build centers on a common box fan, but the details matter. One approach tested by hobbyists uses a 21-inch fan, a set of four 20 x 20 x 1 inch furnace filters, duct tape, and two large pieces of cardboard. The four filters stand on edge and tape together into a square column, with the box fan mounted on top pulling air upward through the open cube. Cardboard panels close off the bottom and any gaps, creating a sealed path that forces all intake air through the filter media instead of around it. A 10d nail and marker handle layout tasks like tracing fan outlines, poking alignment holes, and marking airflow directions on the filter frames.
MERV, short for minimum efficiency reporting value, is the standard scale for comparing filter performance. Filters rated MERV 1 through 4 exist mainly to protect equipment and catch only the largest particles. For fine workshop dust, MERV 13 or higher is the target because those filters capture a substantial fraction of particles in the 0.3 to 1 micron range that stay suspended the longest. The four-filter cube design matters because it roughly quadruples the filter surface area compared to a single panel taped flat to a fan. More surface area means less airflow resistance, which lets the fan move more air and extends filter life before the media loads up with dust. It also allows the fan motor to run cooler, which becomes important when the scrubber operates for hours during sanding or planing sessions.
What the Lab Data Actually Shows
Bench tests give a clearer picture of what a box-fan scrubber can really do. A peer-reviewed study archived in the National Library of Medicine evaluated simple DIY air cleaners against fine smoke particles in controlled conditions. In that work, a basic fan-and-filter setup using a MERV-13 panel achieved a Clean Air Delivery Rate of roughly 111 cubic feet per minute, meaning it removed as many particles as 111 cubic feet of completely clean air delivered each minute. The researchers found that adding a cardboard shroud to better match the fan’s circular blade area, using thicker filters, and switching to multiple-filter configurations all boosted performance in measurable steps without exotic parts or tools.
Those results are detailed in an Indoor Air article that has become a touchstone for DIY filtration projects. Building on that work, the Environmental Protection Agency reviewed several designs and confirmed that shrouds, deeper filter media, and multi-filter builds each independently improve effectiveness of homemade cleaners, especially when fan speed is set high. The EPA’s summary notes that while CADR varies by model and configuration, well-built fan-filter cubes can rival or exceed many consumer air purifiers on a per-dollar basis. For woodworkers, that means a small stack of furnace filters and a fan can realistically strip a large share of airborne dust from a one- or two-car garage shop between cuts.
Safety, Sizing, and the Limits of DIY
Fire risk is the first question skeptics raise, and it has a direct answer. The Chemical Insights Research Institute of Underwriters Laboratories evaluated DIY air filtration units for fire and burn hazards under both realistic and worst-case operating scenarios. Researchers tested multiple box fan models with clean and heavily loaded filters and monitored component temperatures against established safety standards. They did not find evidence of immediate fire danger when the fans were used as intended, but the EPA still recommends using newer, certified box fans, keeping intakes clear, and avoiding unattended overnight operation. In a woodworking context, that advice extends to keeping the scrubber away from loose plastic sheeting, solvent rags, and other flammables that could block airflow or overheat if they contact the motor housing.
Sizing the scrubber to the room is the next practical step. Public health agencies often translate CADR into room-area guidance, with a common rule of thumb that a cleaner’s CADR in cubic feet per minute should be at least two-thirds of the room’s square footage for meaningful air changes per hour. Using the 111 CFM benchmark from lab tests, a single cube scrubber would be well suited to a small, enclosed workspace and could be doubled up in a larger garage or basement shop. Research in schools illustrates the impact of getting that sizing right: a study in Building and Environment found that DIY units in U.S. classrooms reduced particle concentrations and boosted effective air changes per hour even in buildings with modest existing ventilation. Classrooms are not workshops, and wood dust generation is more intermittent and localized than student occupancy, but the underlying principle holds: more clean air per minute means lower average particle levels over time.
Making a DIY Scrubber Part of a Bigger Dust Strategy
A box-fan cube is powerful for its cost, yet it is only one piece of a complete dust-control plan. For cutting and sanding, local capture at the source still matters most: a shop vac or central collector connected to tool ports will intercept large chips and much of the fine dust before it ever reaches the room air. The scrubber then works on whatever escapes, continuously cycling the shop volume to pull down background concentrations between tasks. Positioning it near the center of the space or in a location where the fan can “see” most of the room—rather than tucked in a corner behind cabinets—helps maximize its reach. Some woodworkers also run the unit for 20–30 minutes after they finish for the day, letting it polish off the lingering haze while they sweep and put tools away.
Personal protective equipment closes the loop. Even with a well-designed scrubber and good collection at the tools, there will be moments (such as hand-sanding, blowing off projects with compressed air, or routing small parts) when dust spikes right in the breathing zone. A properly fitted respirator or disposable mask rated for fine particles adds a final barrier during those tasks. Combined with regular filter changes, visual checks for dust buildup around the shop, and occasional cleaning of the fan housing, the DIY cube becomes part of a layered defense. It cannot replace careful tool hookups or safe work habits, but for the cost of a few filters and an hour of assembly, it dramatically improves the air that woodworkers breathe every time they flip on a saw.
