Computed tomography is now doing for ancient metalworking what it once did for medicine, turning opaque fragments of slag into detailed cross-sections of early technology. By peering inside 5,000-year-old copper smelting waste without breaking it apart, researchers are reconstructing how some of the first metalworkers controlled heat, air, and chemistry at the dawn of metallurgy.
Instead of treating slag as formless debris, the new scans reveal it as a kind of time capsule, preserving droplets, bubbles, and mineral veins that record each step of a furnace’s operation. I see this as a shift in how we read the archaeological record, where industrial leftovers become primary witnesses to the skills, experiments, and missteps of the people who first learned to turn rock into metal.
CT scans turn slag into a 3D archive of early furnaces
The core advance here is methodological: researchers are using X-ray computed tomography to map the internal structure of intact slag, then linking those images to chemical and microscopic tests. Instead of slicing samples into thin sections and losing context, they can now rotate a virtual model, track individual droplets of metal, and decide exactly where to cut for follow-up analysis. That shift lets them treat each slag lump as a 3D archive of furnace conditions, rather than a random cross-section.
In a paper published in Nov research, the team showed that CT volumes could guide targeted sampling of specific regions, such as dense metallic inclusions or gas-rich zones, for more precise laboratory work. A companion description of the work in Finding stories in slag emphasizes that this approach lets them characterize intact droplets and voids before they ever touch a saw or a polishing wheel, preserving relationships that would otherwise be destroyed.
5,000-year-old copper slag and what it reveals

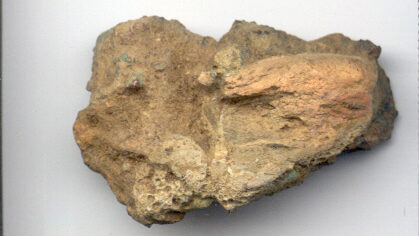

The most striking application so far involves 5,000-year-old copper smelting slag from ancient production sites, where the material has survived long after furnaces and tools have vanished. CT scanning technology is now illuminating the internal structure of this 5,000-year-old slag, revealing trapped metal beads, layered glassy phases, and frozen gas bubbles that together record how efficiently the copper was extracted. Those details help me see the slag not as waste, but as a frozen snapshot of a single smelting run, complete with its successes and inefficiencies.
Reporting from mid Nov work explains that the CT data show how metal droplets cluster, coalesce, or remain isolated inside the slag, which in turn reflects how well the furnace atmosphere and temperature were tuned. When I look at those patterns, I see evidence of trial and error: some slag pieces preserve large, well-formed copper pools that suggest effective tapping, while others trap scattered beads that hint at lost metal and less efficient practice.
From “green slags” to chemical fingerprints
CT imaging alone cannot tell the full story, so the researchers pair it with detailed chemical analysis of specific slag types. A study published on Nov 10, 2025 focuses on so-called “green slags,” including samples labeled H76-37A and S45B, which stand out visually because of their color and texture. Visual inspection of these “green slags,” in addition to subsequent XRF analyses, correlated with internal structures that the CT scans had already mapped, tying what we see on the surface to what is hidden inside.
By combining Visual observations with XRF measurements of elements like copper, iron, and silica, the team can assign chemical fingerprints to specific textures and CT features. That means a porous, bubble-rich zone in H76-37A, for example, can be linked directly to a particular composition and likely furnace condition, while a denser band in S45B might reflect a different phase of the smelt. For me, that integration of Visual, XRF, and CT data turns slag into a layered dataset, where color, chemistry, and 3D structure all reinforce one another.
Archaeometallurgy meets high-tech imaging
What stands out in this work is how comfortably it sits at the intersection of archaeology, materials science, and engineering. Archaeometallurgy has long relied on careful excavation and traditional microscopy, but the adoption of CT scanning adds a non-destructive, volumetric view that was previously missing. Instead of choosing between preserving an artifact and studying it in depth, researchers can now do both, then decide where to intervene physically only when the digital evidence demands it.
A detailed account shared in late Nov coverage frames this as part of a broader push From The Massachusetts Institute of Technology to bring Archaeometallurgy into closer dialogue with advanced imaging and modeling. I read that as a sign that MIT researchers are not just borrowing tools from medical imaging, but actively reshaping how archaeologists think about industrial debris, treating slag as engineered material whose internal architecture can be reverse engineered.
Reconstructing ancient know-how from slag textures
Once the CT volumes and chemical data are in hand, the real interpretive work begins: inferring how ancient craftspeople ran their furnaces. The distribution of voids, the size and shape of metal droplets, and the layering of different glassy phases all point to specific temperature histories and airflow patterns. When I look at those patterns, I see evidence of deliberate control, not random burning, which suggests that early metalworkers had a practical, if not theoretical, grasp of thermodynamics and redox chemistry.
The Finding stories narrative highlights how CT scans allowed the team to identify intact droplets and channels that record the flow of molten material through the slag. When those features are matched with the PLOS One chemical profiles from Nov PLOS One, they reveal whether the furnace atmosphere was oxidizing or reducing, how long the charge stayed hot, and how effectively slag separated from metal. To me, that level of reconstruction turns each slag fragment into a kind of process log, one that captures the tacit knowledge of workers who never wrote down their recipes.
Why early metal production still matters today
It might be tempting to treat these findings as purely antiquarian, but the implications reach into modern materials science and industry. Understanding how small changes in furnace design or operating practice affected slag structure 5,000 years ago can inform how we think about waste streams and process efficiency now. When I see CT scans of ancient slag, I also see a mirror for contemporary smelting and recycling, where similar thermodynamic principles govern how metals separate, coalesce, and get trapped in byproducts.
The work described in Nov MIT research suggests that the same CT-guided approach could be applied to modern slags, industrial ceramics, or even additively manufactured metals, where internal defects and phase distributions are critical. By treating ancient slag as a testbed for correlating 3D structure with process history, researchers are effectively building a toolkit that can be transferred to present-day challenges, from improving copper recovery to designing more sustainable furnace operations.
